8.5.2 Data Format

The device provides 24 bits of data in binary two's complement format. Use Equation 8 to calculate the size of one code (LSB).

Equation 8. 1 LSB = (2 · VREF / Gain) / 224 = +FS / 223

A positive full-scale input [VIN ≥ (+FS – 1 LSB) = (VREF / Gain – 1 LSB)] produces an output code of 7FFFFFh and a negative full scale input (VIN ≤ –FS = –VREF / Gain) produces an output code of 800000h. The output clips at these codes for signals that exceed full-scale.

Table 15 summarizes the ideal output codes for different input signals.

Table 15. Ideal Output Code versus Input Signal

INPUT SIGNAL,
VIN = VAINP – VAINN 		IDEAL OUTPUT CODE(1)
≥ FS (223 – 1) / 223 7FFFFFh
FS / 223 000001h
0 000000h
–FS / 223 FFFFFFh
≤ –FS 800000h
(1) Excludes the effects of noise, INL, offset, and gain errors.

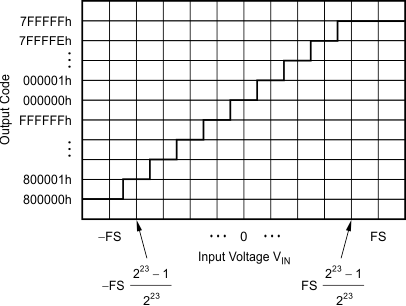

Figure 56 shows the mapping of the analog input signal to the output codes.

ADS122C04 ai_code_transition_bas501.gifFigure 56. Code Transition Diagram

NOTE

Single-ended signal measurements, where VAINN = 0 V and VAINP = 0 V to +FS, only use the positive code range from 000000h to 7FFFFFh. However, because of device offset, the ADS122C04 can still output negative codes when VAINP is close to 0 V.
