1 Features

  • High-Accuracy Coulomb Counter with Input Offset Error < 1 µV (Typical)
  • High-Side FET Drive Allows Serial Bus Communication During Fault Conditions
  • Analog Front End with Two Independent ADCs
    • Support for Simultaneous Current and Voltage Sampling
  • Bus Communications Interface Options
    • I2C
    • HDQ
  • SHA-1 Hash Message Authentication Code (HMAC) Responder for Increased Battery Pack Security
    • Split Key (2 × 64) Stored in Secure Memory
  • Programmable Protection Levels for:
    • Overcurrent in Discharge
    • Short-Circuit Current in Charge
    • Short-Circuit Current in Discharge
    • Overvoltage
    • Undervoltage
    • Overtemperature
  • Supports a 1-mΩ to 3-mΩ Current Sense Resistor
  • Compact 12-Terminal SON Package (DRZ)

2 Applications

  • Portable and Wearable Health Devices
  • Portable Radios
  • Industrial Data Collection

3 Description

The bq78z100 device provides a fully integrated pack-based solution with a flash programmable custom reduced instruction-set CPU (RISC), safety protection, and authentication for 1-series to 2-series cell Li-Ion and Li-Polymer battery packs.

The bq78z100 gas gauge communicates via an I2C-compatible interface or single-wire HDQ interface and combines an ultra-low-power, high-speed TI bqBMP processor, high-accuracy analog measurement capabilities, integrated flash memory, an array of peripheral and communication ports, an N-channel FET drive, and a SHA-1 Authentication transform responder into a complete, high-performance battery management solution.

The bq78z100 device provides an array of battery and system safety functions, including overcurrent in discharge, short circuit in charge, and short circuit in discharge protection for the battery, as well as FET protection for the N-channel FETs, internal AFE watchdog, and cell balancing. Through firmware, the devices can provide a larger array of features including protection against overvoltage, undervoltage, overtemperature, and more.

Device Information(1)

PART NUMBER PACKAGE BODY SIZE (NOM)
bq78z100 VSON (12) 4.00 mm × 2.50 mm
  1. For all available packages, see the orderable addendum at the end of the data sheet.

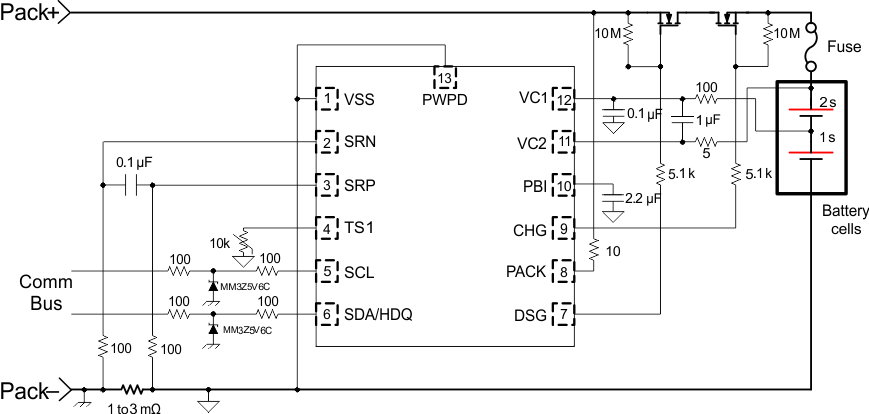

4 Simplified Schematic

bq78z100 Simplified_schematic_NO_BTP.gif
