7.5.1 Serial Data Format

The serial data consists of a 16-bit serial write, with a read/write bit, 3 address bits and 12 data bits. The 3 address bits identify one of the registers defined in the register section above. To complete the read or write transaction, SCS must be set to a logic 0.

To write to a register, data is shifted in after the address as shown in the timing diagram below. The first bit at the beginning of the access must be logic low for a write operation.

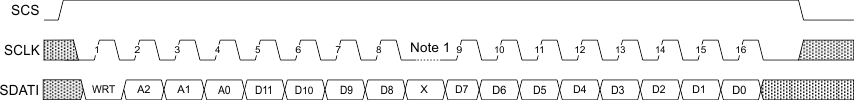

DRV8711 ser_dat_form_1_SLVSC40.gif
A. Any amount of time may pass between bits, as long as SCS stays active high. This allows two 8-bit writes to be used.
Figure 17. Write Operation

Data may be read from the registers through the SDATO pin. During a read operation, only the address is used form the SDATI pin; the data bits following are ignored. The first bit at the beginning of the access must be logic high for a read operation.

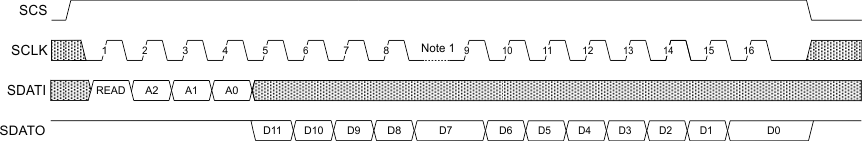

DRV8711 ser_dat_form_2_SLVSC40.gif
1. Any amount of time may pass between bits, as long as SCS stays active high. This allows two 8-bit writes to be used.
Figure 18. Read Operation
