11 Layout

11.1 Layout Guidelines

SN75LVPE802 Trace_Length_example_for_LVPE802.gif
1. Trace lengths are suggested values based on TI spice simulations (done over programmable limits of input EQ and output de-emphasis) to meet SATA loss and jitter spec.
Actual trace length supported by the LVPE802 may be more or less than suggested values and will depend on board layout, trace widths and number of connectors used in the SATA signal path.
Figure 46. Trace Length Example for LVPE802

11.2 Layout Example

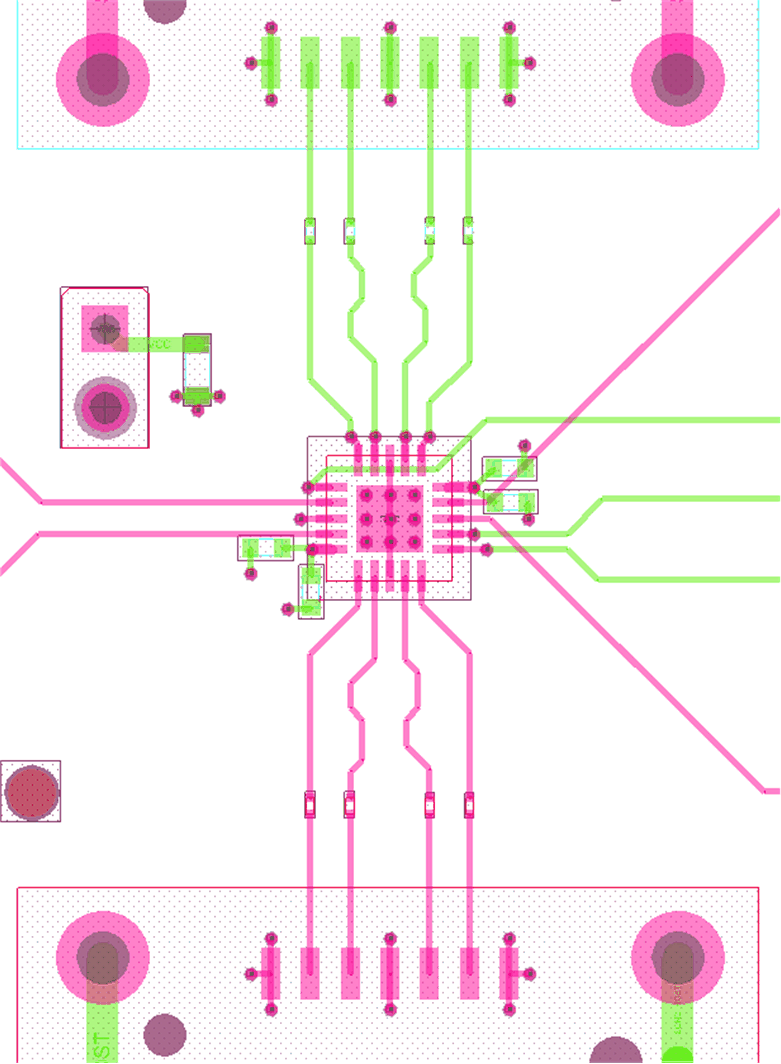

SN75LVPE802 Layout_Example.gif Figure 47. Example Layout
