7 Parametric Measurement Information

7.1 Test Circuits

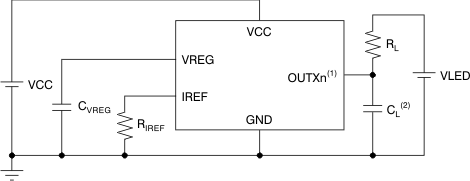

TLC5971 test_rise_fall_outxn_bvs146.gif
1. X = R/G/B, n = 0-3.
2. CL includes measurement probe and stray capacitance.
Figure 17. Rise/Fall Time Test Circuit for OUTXn

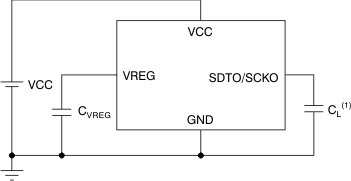

TLC5971 test_rise_fall_sdto-scko_bvs146.gif
1. CL includes measurement probe and stray capacitance.
Figure 18. Rise/Fall Time Test Circuit for SDTO/SCKO

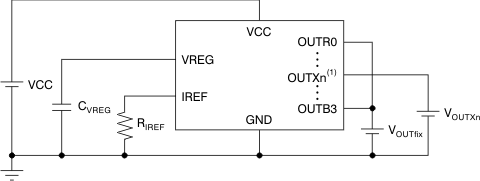

TLC5971 test_cc_outxn_bvs146.gif
1. X = R/G/B, n = 0-3.
Figure 19. Constant-Current Test Circuit for OUTXn

7.2 Pin Equivalent Input and Output Schematics

TLC5971 pmi_sdti-scki_bvs146.gif Figure 20. SDTI/SCKI
TLC5971 pmi_sdto-scko_bvs146.gif Figure 21. SDTO/SCKO
TLC5971 pmi_outr0-outb3_bvs146.gif
1. X = R/G/B, n = 0-3.
Figure 22. OUTR0 Through OUTB3
