Typical Characteristics

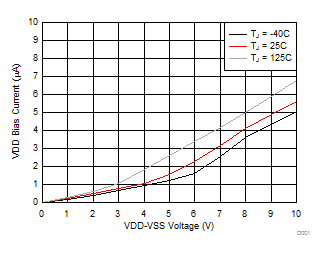

TPS2373 D001_SLUSCD1.gif
Figure 1. Detection Bias Current vs PoE Voltage
TPS2373 D007_SLUSCD1.gif
Figure 3. APD Threshold Voltage vs Temperature, TPS2373-4
TPS2373 D004_SLUSCD1.gif
Figure 5. Classification Upper Threshold vs Temperature

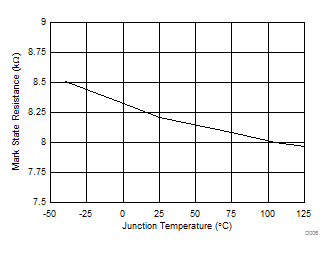

TPS2373 D006_SLUSCD1.gif
Figure 7. Mark Resistance vs Temperature

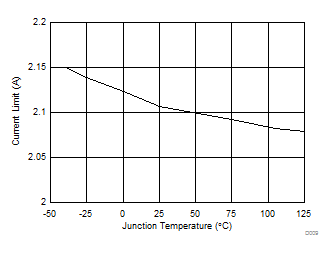

TPS2373 D009_SLUSCD1.gif
Figure 9. PoE Current Limit vs Temperature, TPS2373-4
TPS2373 D011_SLUSCD1.gif
Figure 11. Inrush Termination Threshold vs Temperature, TPS2373-4

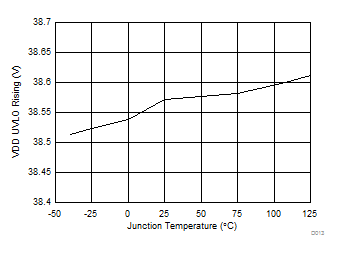

TPS2373 D013_SLUSCD1.gif
Figure 13. UVLO Rising Threshold vs Temperature

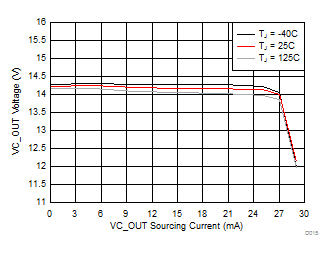

TPS2373 D015_SLUSCD1.gif
Figure 15. Converter Startup Voltage vs Current

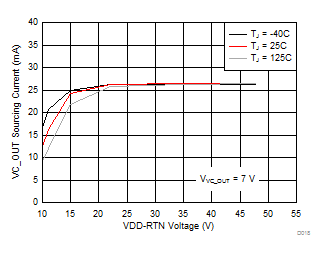

TPS2373 D018_SLUSCD1.gif
Figure 17. Converter Startup Current vs Input Voltage

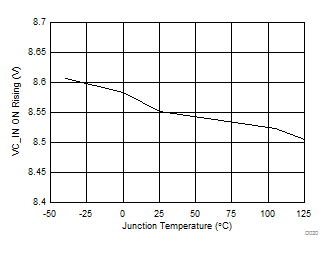

TPS2373 D020_SLUSCD1.gif
Figure 19. VC_IN Threshold vs Temperature
TPS2373 D002_SLUSCD1.gif
Figure 2. IVDD Bias Current vs Voltage
TPS2373 D003_SLUSCD1.gif
Figure 4. Classification Lower Threshold vs Temperature

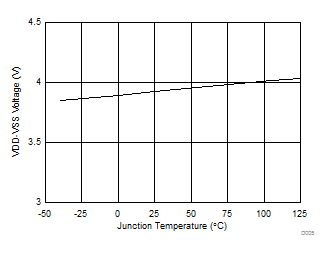

TPS2373 D005_SLUSCD1.gif
Figure 6. Mark Reset Threshold vs Temperature
TPS2373 D008_SLUSCD1.gif
Figure 8. Pass FET Resistance vs Temperature, TPS2373-4
TPS2373 D010_SLUSCD1.gif
Figure 10. PoE Inrush Current Limit vs Temperature, TPS2373-4
TPS2373 D012_SLUSCD1.gif
Figure 12. Inrush Time Delay vs Temperature
TPS2373 D014_SLUSCD1.gif
Figure 14. UVLO Falling Threshold vs Temperature
TPS2373 D017_SLUSCD1.gif
Figure 16. Converter Startup Current vs Input Voltage

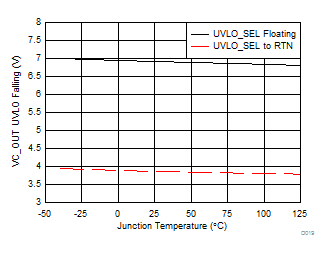

TPS2373 D019_SLUSCD1.gif
Figure 18. VC_OUT UVLO vs Temperature

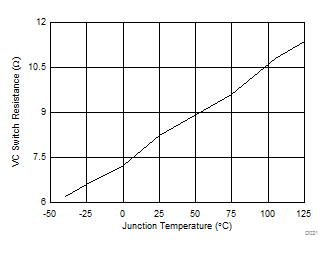

TPS2373 D021_SLUSCD1.gif
Figure 20. VC Switch Resistance vs Temperature
