Parameter Measurement Information

SN65LVDS93B sch_diag_lls846.gifFigure 3. Equivalent Input and Output Schematic Diagrams
SN65LVDS93B set_hold_lls846.gif
All input timing is defined at IOVDD / 2 on an input signal with a 10% to 90% rise or fall time of less than 3 ns. CLKSEL = 0V.
Figure 4. Setup and Hold Time Definition

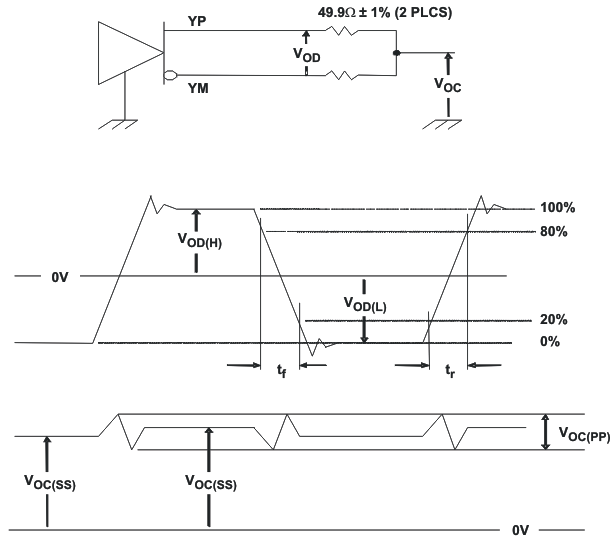

SN65LVDS93B test_load_lls846.gifFigure 5. Test Load and Voltage Definitions for LVDS Outputs
SN65LVDS93B gray_scale_lls846.gif
The 16 grayscale test pattern test device power consumption for a typical display pattern.
Figure 6. 16 Grayscale Test Pattern
SN65LVDS93B worst_case_lls846.gif
The worst-case test pattern produces nearly the maximum switching frequency for all of the LVDS outputs.
Figure 7. Worst-Case Power Test Pattern
SN65LVDS93B timing_lls846.gif
CLKOUT is shown with CLKSEL at high-level.
CLKIN polarity depends on CLKSEL input level.
Figure 8. SN65LVDS93B Timing Definitions
SN65LVDS93B out_clock_lls846.gifFigure 9. Output Clock Jitter Test Set Up

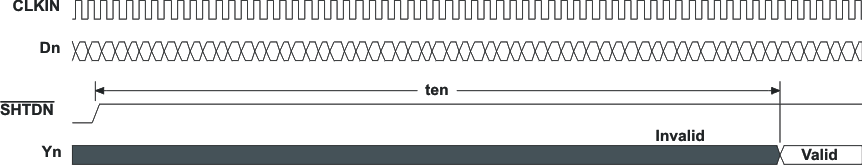

SN65LVDS93B enable_time_lls846.gifFigure 10. Enable Time Waveforms

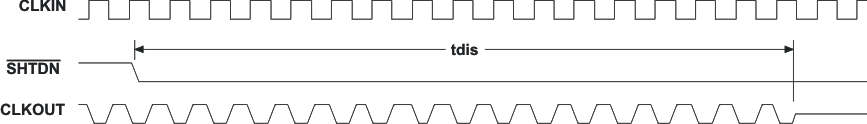

SN65LVDS93B disable_time_lls846.gifFigure 11. Disable Time Waveforms
