   TLC320AD58

[description] [block diagram]
[key features] [applications]
Also Available : (In .pdf Format)
[data sheet and application report]


DESCRIPTION
The TLC320AD58 is a stereo analog-to-digital converter utilizing the sigma-delta architecture. This converter contains two separate converters with a common control and serial interface.

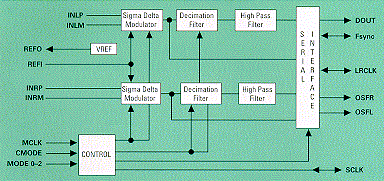

BLOCK DIAGRAM


KEY FEATURES
  • Power supply: Single 5 V
  • Power-down mode
  • Serial port interface
  • 95-dB dynamic range
  • 93-dB S/N+D
  • 18 bit resolution
  • Sample rates to 48 kHz

APPLICATIONS
  • Consumer audio
  • Digital radio
  • Industrial process control
  • Multimedia audio
  • Workstations
  • DSP analog interface
