7.3.9 JESD204C Interface

The ADC12DJ5200RF uses a JESD204C high-speed serial interface for data converters to transfer data from the ADC to the receiving logic device. Many of the available JESD204C output formats are backwards compatible with existing JESD204B receivers, including many of the JESD204B modes in the ADC12DJ2700 and ADC12DJ3200. The device serialized lanes are capable of operating with both 8B/10B encoding and 64B/66B encoding. A maximum of 16 lanes can be used to lower lane rates for interfacing with speed-limited logic devices. There are a few differences between 8B/10B and 64B/66B encoded JESD204C, which will be described throughout this section. Figure 7-19 shows a simplified block diagram of the 8B/10B encoded JESD204C interface and Figure 7-20 shows a simplified block diagram of the 64B/66B encoded JESD204C interface.

GUID-236CCC85-7CC5-450C-BD4F-8C54AF2AF3A1-low.gifFigure 7-19 Simplified 8B/10B Encoded JESD204C Interface Diagram

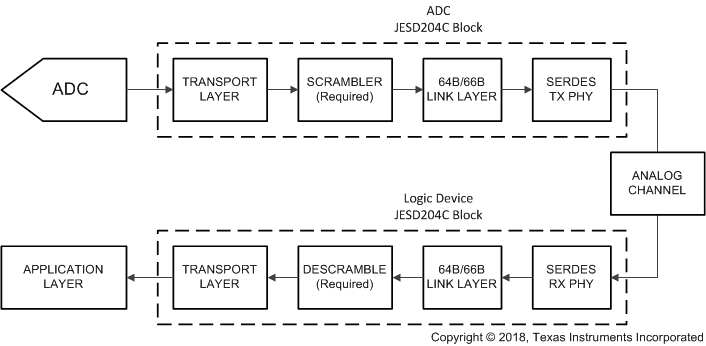

GUID-4034F15A-096F-48D9-9825-D2461422E6B2-low.gifFigure 7-20 Simplified 64B/66B Encoded JESD204C Interface Diagram

The various signals used in the JESD204C interface and the associated the device pin names are summarized briefly in Table 7-16 for reference. Most of the signals are common between 8B/10B and 64B/66B encoded JESD204C, except for SYNC which is not needed to achieve block synchronization for 64B/66B encoding. The sync header encoded into the data stream is used for block synchronization instead of the SYNC signal.

Table 7-16 Summary of JESD204C Signals
SIGNAL NAMEPIN NAMES8B/10B64B/66BDESCRIPTION
DataDA[7:0]+, DA[7:0]–, DB[7:0]+, DB[7:0]–)YesYesHigh-speed serialized data after 8B/10B or 64B/66B encoding
SYNCSYNCSE, TMSTP+, TMSTP–YesNoLink initialization signal (handshake), toggles low to start code group synchronization (CGS) process. Not used for 64B/66B encoding modes, unless it is used for NCO synchronization purposes.
Device clockCLK+, CLK–YesYesADC sampling clock, also used for clocking digital logic and output serializers
SYSREFSYSREF+, SYSREF–YesYesSystem timing reference used to deterministically reset the internal local multiframe clock (LMFC) or local extended multiblock clock (LEMC) counters in each JESD204C device

Not all optional features of JESD204C are supported by the device. The list of features that are supported and the features that are not supported is provided in Table 7-17.

Table 7-17 Declaration of Supported JESD204C Features
LETTER IDENTIFIERREFERENCE CLAUSEFEATURESUPPORT IN ADC12DJ5200RF
aclause 88B/10B link layerSupported
bclause 764B/66B link layerSupported
cclause 764B/80B link layerNot supported
dclause 7The command channel when using the 64B/66B or 64B/80B link layerNot supported
eclause 7Forward error correction (FEC) when using the 64B/66B or 64B/80B link layerSupported
fclause 7CRC3 when using the 64B/66B or 64B/80B link layerNot supported
gclause 8A physical SYNC pin when using the 8B/10B link layerSupported
hclause 7, clause 8Subclass 0Not supported, but subclass 1 transmitter is compatible with subclass 0 receiver
iclause 7, clause 8Subclass 1Supported
jclause 8Subclass 2Not supported
kclause 7, clause 8Lane alignment within a single linkSupported
lclause 7, clause 8Subclass 1 with support for a lane alignment on a multipoint link by means of the MULTIREF signalNot supported
mclause 8SYNC interface timing is compatible with JESD204ASupported
nclause 8SYNC interface timing is compatible with JESD204BSupported
