7.3.8.1 Wideband Filter

The wideband filter is a multistage FIR design featuring linear phase response, flat pass-band amplitude, narrow transition band, and high stop-band attenuation. Because of these characteristics, it is the recommended filter for measuring ac signals. The ADC provides eight programmable OSR values and four speed modes, offering a range of data rate, bandwidth and resolution options.

Figure 7-12 through Figure 7-16 illustrate the frequency response of the wideband filter. Figure 7-12 shows details of the pass-band ripple. Figure 7-13 shows the frequency response at the transition band.

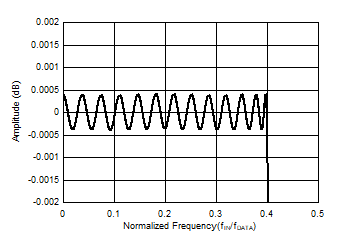

ADS117L14 ADS117L18 Wideband Filter Pass-Band Ripple

Figure 7-12 Wideband Filter Pass-Band Ripple
ADS117L14 ADS117L18 Wideband Filter Transition Band

Figure 7-13 Wideband Filter Transition Band

Figure 7-14 shows the frequency response to fDATA for OSR ≥ 64. The stop band begins at fDATA / 2 to prevent aliasing at the Nyquist frequency. Figure 7-15 shows the stop-band attenuation to fMOD for OSR = 32. In the stop-band region, out-of-band input frequencies mix with multiples of the fMOD / 32 chop frequency. This process creates a pattern of stop-band response peaks that exceed the attenuation provided by the digital filter. The width of the response peaks is twice the filter bandwidth. Stop-band attenuation is improved when used in conjunction with an anti-alias filter at the ADC input.

ADS117L14 ADS117L18 Wideband Filter Frequency Response
OSR ≥ 64
Figure 7-14 Wideband Filter Frequency Response
ADS117L14 ADS117L18 Wideband Filter Stop-Band
OSR = 32
Figure 7-15 Wideband Filter Stop-Band

Figure 7-16 shows the filter response centered at fMOD, where the filter response repeats. If not removed by an anti-alias filter, input frequencies at fMOD appear as aliased frequencies in the pass band. Aliasing also occurs by input frequencies occurring at multiples of fMOD. These frequency bands are defined by:

Equation 16. Alias frequency bands: (N · fMOD) ± fBW

where:

  • N = 1, 2, 3, and so on
  • fMOD = Modulator sampling frequency
  • fBW = Filter bandwidth

ADS117L14 ADS117L18 Wideband Filter Frequency Response Centered at fMOD

Figure 7-16 Wideband Filter Frequency Response Centered at fMOD

The group delay of the filter is the time for a signal to propagate from the input to the output of the filter. Because the filter is a linear-phase design, the envelope of a multifrequency complex signal is undistorted by filter processing. The group delay (expressed in units of time) is constant versus signal frequency and is equal to 34 / fDATA. Be aware that after a step input is applied to the ADC inputs, fully settled data occurs 68 data periods later. Figure 7-17 shows the filter group delay (34 / fDATA) and the settling time for a step input (68 / fDATA).

ADS117L14 ADS117L18 Wideband Filter Step Response

Figure 7-17 Wideband Filter Step Response

The digital filter restarts when the ADC is synchronized. After synchronization, the filter discards the next 68 conversions to account for filter settling time. The Latency Time column of Table 7-7 lists the time for the first conversion to appear on the frame-sync port after synchronization. The latency time includes an initial overhead time for filter reset. The first data is fully settled data. If a step input occurs while continuously converting, then the next 69 conversions are partially settled data.

Table 7-2 Wideband Filter Characteristics
MODEfCLK
(MHz)		OSRDATA RATE
(kSPS)		–0.1dB FREQUENCY
(kHz)		–3dB FREQUENCY
(kHz)		LATENCY TIME(1)
(µs)
Max speed32.76832512211.2223.9134.2
High speed25.6400165174.96171.8
Mid speed12.820082.587.48343.5
Low speed3.25020.6321.871374
Max speed32.76864256105.6112.0267.0
High speed25.620082.587.48341.8
Mid speed12.810041.2543.74683.5
Low speed3.22510.3110.942734
Max speed32.76812812852.855.99532.0
High speed25.610041.2543.74681.0
Mid speed12.85020.6321.871362
Low speed3.212.55.15625.4685448
Max speed32.7682566426.428.001064
High speed25.65020.62521.871362
Mid speed12.82510.3110.932724
Low speed3.26.252.5782.73410895
Max speed32.7685123213.214.002126
High speed25.62510.31210.9352721
Mid speed12.812.55.1565.4675443
Low speed3.23.1251.2891.36721770
Max speed32.7681024166.67.9984251
High speed25.612.55.1565.4675441
Mid speed12.86.252.5782.73410883
Low speed3.21.56250.6450.683443530
Max speed32.768204883.33.4998501
High speed25.66.252.5782.73410881
Mid speed12.83.1251.2891.36721762
Low speed3.20.781250.3220.341787050
Max speed32.768409641.651.75017001
High speed25.63.1251.2891.36721761
Mid speed12.81.56250.6450.683443522
Low speed3.20.3906250.1610.1709174090
(1) Latency time increases by 8 / fCLK (µs) when the analog input buffers are enabled.
