6.12.5.2 CPTS

Table 6-40, Table 6-41, Figure 6-32, Table 6-42, and Figure 6-33 present timing conditions, timing requirements, and switching characteristics for CPTS.

Table 6-40 CPTS Timing Conditions
PARAMETER MIN MAX UNIT
INPUT CONDITIONS
SRI Input slew rate 0.5 5 V/ns
OUTPUT CONDITIONS
CL Output load capacitance 2 10 pF
Table 6-41 CPTS Timing Requirements see Figure 6-32
NO. PARAMETER DESCRIPTION MIN MAX UNIT
T1 tw(HWTSPUSHH) Pulse duration, HWnTSPUSH high 12P(1) + 2 ns
T2 tw(HWTSPUSHL) Pulse duration, HWnTSPUSH low 12P(1) + 2 ns
T3 tc(RFT_CLK) Cycle time, RFT_CLK 5 8 ns
T4 tw(RFT_CLKH) Pulse duration, RFT_CLK high 0.45T(2) ns
T5 tw(RFT_CLKL) Pulse duration, RFT_CLK low 0.45T(2) ns
(1) P = functional clock period in ns.
(2) T = RFT_CLK cycle time in ns.
AM62P AM62P-Q1 CPTS Timing Requirements Figure 6-32 CPTS Timing Requirements

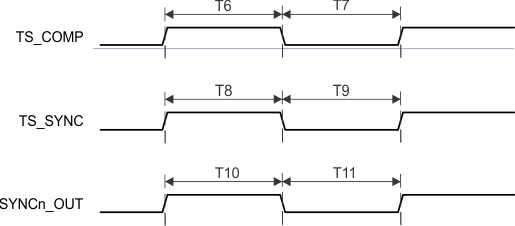

Table 6-42 CPTS Switching Characteristics see Figure 6-33
NO. PARAMETER DESCRIPTION SOURCE MIN MAX UNIT
T6 tw(TS_COMPH) Pulse duration, TS_COMP high 36P(1) - 2 ns
T7 tw(TS_COMPL) Pulse duration, TS_COMP low 36P(1) - 2 ns
T8 tw(TS_SYNCH) Pulse duration, TS_SYNC high 36P(1) - 2 ns
T9 tw(TS_SYNCL) Pulse duration, TS_SYNC low 36P(1) - 2 ns
T10 tw(SYNC_OUTH) Pulse duration, SYNCn_OUT high TS_SYNC 36P(1) - 2 ns
GENF 5P(1) - 2 ns
T11 tw(SYNC_OUTL) Pulse duration, SYNCn_OUT low TS_SYNC 36P(1) - 2 ns
GENF 5P(1) - 2 ns
(1) P = functional clock period in ns.
AM62P AM62P-Q1 CPTS Switching Characteristics Figure 6-33 CPTS Switching Characteristics

For more information, see Common Platform Time Sync (CPTS) chapter in the device TRM.
