8.16.5 TX Performance

GUID-05B07814-14B6-4CFC-818E-B3EF216330FA-low.gifFigure 8-21 Output Power vs. Temperature (BLE 1 Mbps, 2.44 GHz)
GUID-AA6ABA27-21AD-4609-B6EB-163F28BD22D0-low.gifFigure 8-23 Output Power vs. Temperature (BLE 1 Mbps, 2.44 GHz, +20 dBm PA)

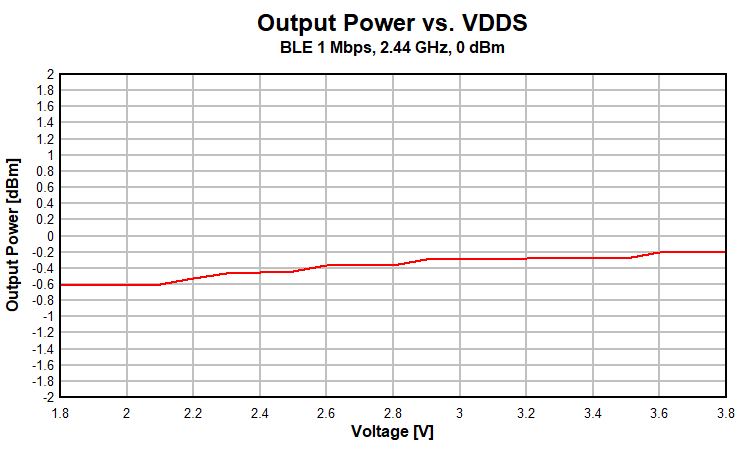

GUID-886AF510-9353-44ED-AE00-0FFCEC879277-low.gifFigure 8-25 Output Power vs. Supply Voltage (VDDS) (BLE 1 Mbps, 2.44 GHz)
GUID-D35E3BFA-4979-4AAC-B605-22E555002D05-low.gifFigure 8-27 Output Power vs. Supply Voltage (VDDS) (BLE 1 Mbps, 2.44 GHz, +20 dBm PA)

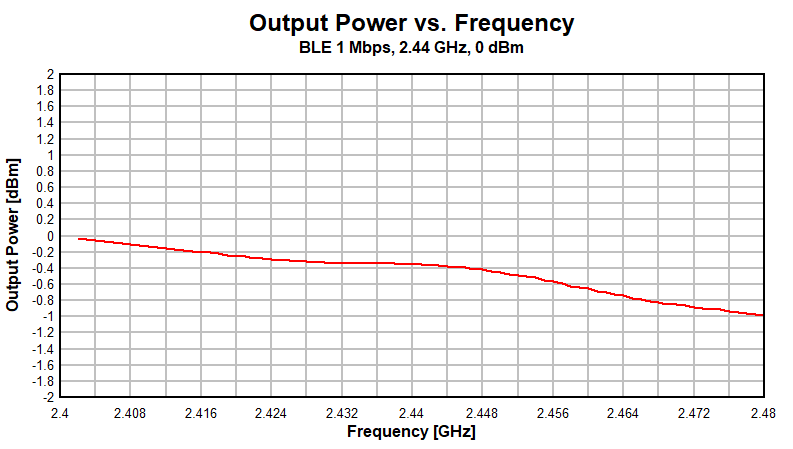

GUID-6D9A3D8F-328B-4FB8-87D0-2A546610BDCC-low.gifFigure 8-29 Output Power vs. Frequency (BLE 1 Mbps, 2.44 GHz)
GUID-70CB02CA-3C0F-48DE-A3CE-BEB84F1A3204-low.gifFigure 8-31 Output Power vs. Frequency (BLE 1 Mbps, 2.44 GHz, +20 dBm PA)

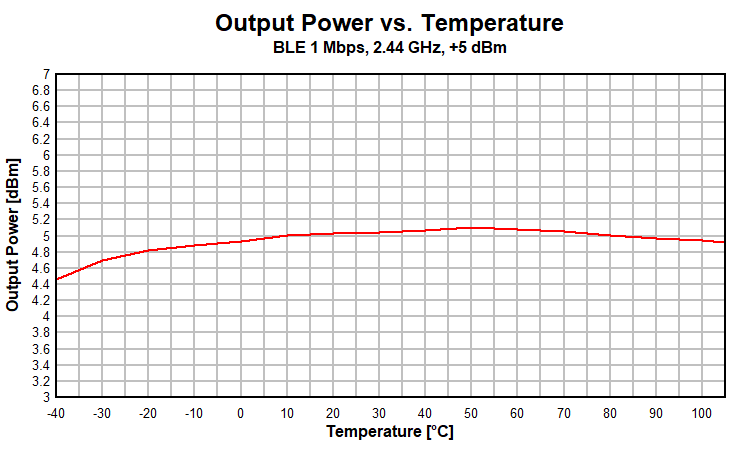

GUID-C25347B4-9789-42D4-B322-750EF65585F2-low.gifFigure 8-22 Output Power vs. Temperature (BLE 1 Mbps, 2.44 GHz, +5 dBm)
GUID-8E9FEB1A-0D22-455A-8A91-2375F91C1882-low.gifFigure 8-24 Output Power vs. Temperature (2.44 GHz, +10 dBm PA)

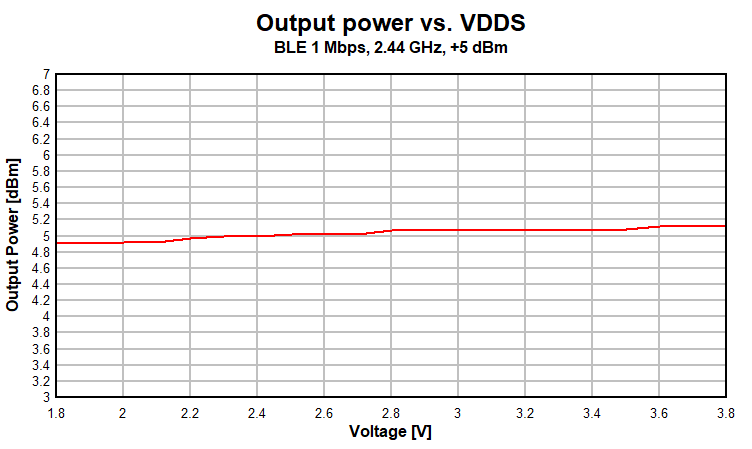

GUID-D9BB3017-023D-4CC4-9C50-1E0CD3B21A30-low.gifFigure 8-26 Output Power vs. Supply Voltage (VDDS) (BLE 1 Mbps, 2.44 GHz, +5 dBm)
GUID-19A2AA5D-9C46-45E8-9545-437594CA9369-low.gifFigure 8-28 Output Power vs. Supply Voltage (VDDS) (2.44 GHz, +10 dBm PA)

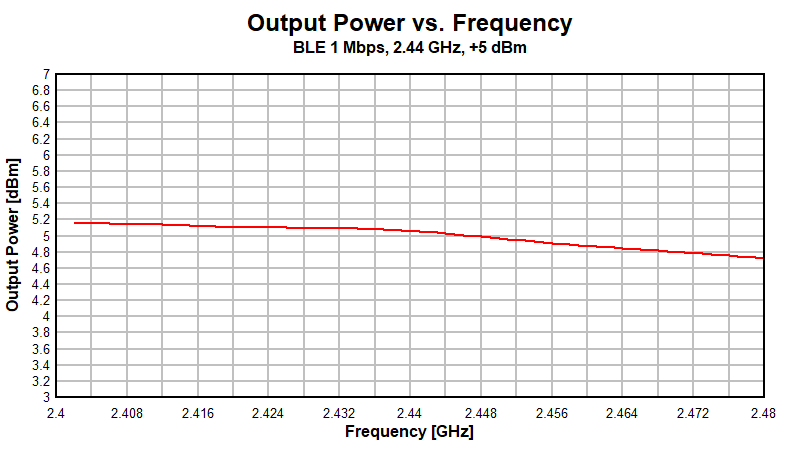

GUID-20C18FAF-8AB9-4545-9E6F-788849B6077B-low.gifFigure 8-30 Output Power vs. Frequency (BLE 1 Mbps, 2.44 GHz, +5 dBm)

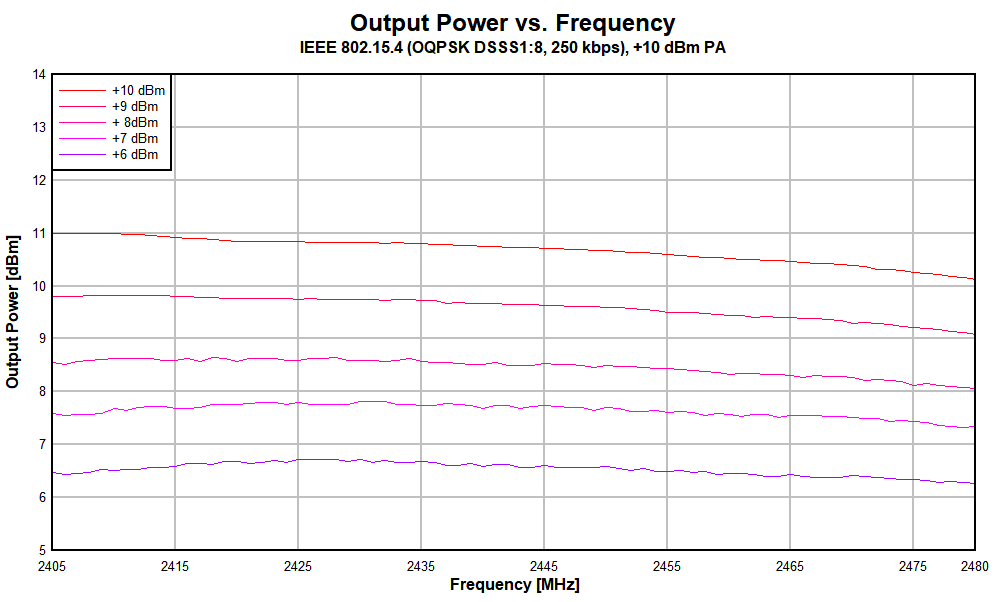

GUID-8B963A46-926B-4D7A-918D-461B3D5679C7-low.gifFigure 8-32 Output Power vs. Frequency (250 kbps, +10 dBm PA)
