9.2.2.1 Spread Spectrum Clock (SSC)

Spread spectrum modulation is a method to spread emitted energy over a larger bandwidth. In clocking, spread spectrum can reduce electromagnetic interference (EMI) by reducing the level of emission from clock distribution network.

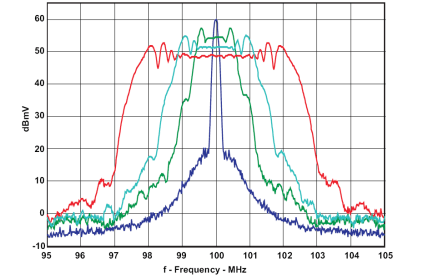

CDCE949 CDCEL949 Comparison Between Typical Clock Power Spectrum and Spread-Spectrum Clock
CDCS502 with a 25MHz Crystal, FS = 1, Fout = 100MHz, and 0%, ±0.5, ±1%, and ±2% SSC
Figure 9-3 Comparison Between Typical Clock Power Spectrum and Spread-Spectrum Clock
