Description

This 40V, 1.4mΩ, TO-220 NexFET™ power MOSFET is designed to minimize losses in power conversion applications.

Product Summary
TA = 25°C TYPICAL VALUE UNIT
VDS Drain-to-Source Voltage 40 V
Qg Gate Charge Total (10V) 118 nC
Qgd Gate Charge Gate-to-Drain 21 nC
RDS(on) Drain-to-Source On-Resistance VGS = 4.5V 2.0 mΩ
VGS = 10V 1.4
VGS(th) Threshold Voltage 1.7 V
Device Information(1)
DEVICEMEDIAQTYPACKAGESHIP
CSD18510KCSTube50TO-220
Plastic Package
Tube
For all available packages, see the orderable addendum at the end of the data sheet.
Absolute Maximum Ratings
TA = 25°CVALUEUNIT
VDSDrain-to-Source Voltage40V
VGSGate-to-Source Voltage±20V
IDContinuous Drain Current (Package Limited)200A
Continuous Drain Current (Silicon Limited), TC = 25°C288
Continuous Drain Current (Silicon Limited), TC = 100°C204
IDMPulsed Drain Current(1)400A
PDPower Dissipation250W
TJ,
Tstg
Operating Junction,
Storage Temperature
–55 to 175°C
EASAvalanche Energy, Single Pulse
ID = 81A, L = 0.1mH, RG = 25Ω
328mJ
Max RθJC = 0.6°C/W, pulse duration ≤ 100μs, duty cycle ≤ 1%.
GUID-5C21E949-D7A2-4412-9971-67CD7FDB678D-low.gif RDS(on) vs VGS

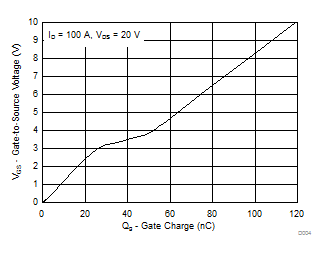

GUID-AB9BC7D3-B627-404F-AF33-22802BFB7957-low.gif Gate Charge
