3 Description

This 100V, 49mΩ, SON 3.3mm × 3.3mm NexFET™ power MOSFET is designed to minimize conduction losses and reduce board footprint in PoE applications.

CSD19538Q3A Top View Top View
Product Summary
TA = 25°C TYPICAL VALUE UNIT
VDS Drain-to-Source Voltage 100 V
Qg Gate Charge Total (10V) 4.3 nC
Qgd Gate Charge Gate to Drain 0.8 nC
RDS(on) Drain-to-Source On Resistance VGS = 6V 58 mΩ
VGS = 10V 49
VGS(th) Threshold Voltage 3.2 V
Package Information
PART NUMBER MEDIA QTY PACKAGE(1) SHIP
CSD19538Q3A 13-in reel 3000 SON
3.30mm × 3.30mm(2)
Plastic package		 Tape and reel
CSD19538Q3AT 7-in reel 250
(1) For all available packages, see the orderable addendum at the end of the data sheet.
(2) The package size (length × width) is a nominal value and includes pins, where applicable.
Absolute Maximum Ratings
TA = 25°C VALUE UNIT
VDS Drain-to-source voltage 100 V
VGS Gate-to-source voltage ±20
ID Continuous drain current (package limited) 15 A
Continuous drain current (silicon limited), TC = 25°C 14
Continuous drain current(1) 4.9
IDM Pulsed drain current(2) 37
PD Power dissipation(1) 2.8 W
Power dissipation, TC = 25°C 23
TJ Operating junction temperature –55 to 150 °C
Tstg Storage temperature
EAS Avalanche energy, single pulse
ID = 12.7A, L = 0.1mH, RG = 25Ω		 8.1 mJ
(1) Typical RθJA = 45°C/W on a 1-in2, 2oz Cu pad on a 0.06 in thick FR4 PCB.
(2) Maximum RθJC = 5.5°C/W, pulse duration ≤ 100μs, duty cycle ≤ 1%.
CSD19538Q3A RDS(on) versus VGS RDS(on) versus VGS

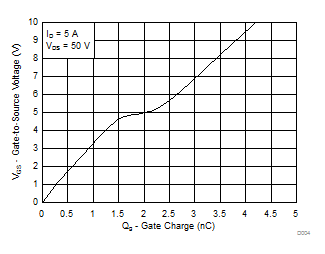

CSD19538Q3A Gate Charge Gate Charge
