4.3 Typical MOSFET Characteristics

TA = 25°C (unless otherwise stated)

CSD19538Q3A Transient Thermal Impedance
Figure 4-1 Transient Thermal Impedance
CSD19538Q3A Saturation Characteristics
Figure 4-2 Saturation Characteristics
CSD19538Q3A Gate Charge
ID = 5A VDS = 50V
Figure 4-4 Gate Charge
CSD19538Q3A Threshold Voltage vs Temperature
ID = 250 µA
Figure 4-6 Threshold Voltage vs Temperature
CSD19538Q3A Normalized On-State Resistance vs Temperature
ID = 5A
Figure 4-8 Normalized On-State Resistance vs Temperature
CSD19538Q3A Maximum Safe Operating Area
Single pulse, max RθJC = 5.5°C/W
Figure 4-10 Maximum Safe Operating Area
CSD19538Q3A Maximum Drain Current vs Temperature
Figure 4-12 Maximum Drain Current vs Temperature
CSD19538Q3A Transfer Characteristics
VDS = 5V
Figure 4-3 Transfer Characteristics
CSD19538Q3A Capacitance
Figure 4-5 Capacitance
CSD19538Q3A On-State Resistance vs Gate-to-Source Voltage
Figure 4-7 On-State Resistance vs Gate-to-Source Voltage

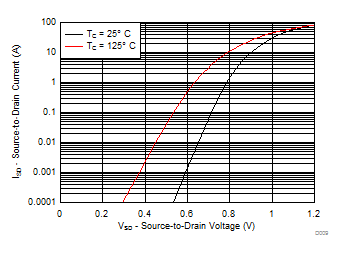

CSD19538Q3A Typical Diode Forward Voltage
Figure 4-9 Typical Diode Forward Voltage

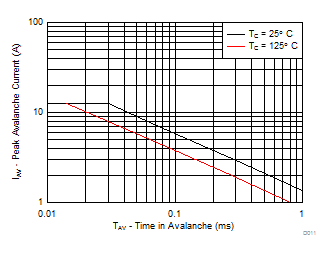

CSD19538Q3A Single Pulse Unclamped Inductive Switching
Figure 4-11 Single Pulse Unclamped Inductive Switching
