7.3.2.6 Illumination Driver plus Power FETs Efficiency

Below (Figure 7-10) an overview is given of the efficiency of the illumination driver plus power FETs for an input voltage of 12 V. Used external components (Figure 7-4): High-side FET (L) CDS17506Q5A, Low-side FET (M) CDS17501Q5A, LOUT = 2 x 2.2 µH parallel, COUT = 88 µF. The efficiency is shown for several output voltage levels (VLED) versus output current.

Figure 7-11 depict the efficiency versus input voltage (VILLUM_A_VIN) at various output voltage levels (VLED) for an output current of 16 A.

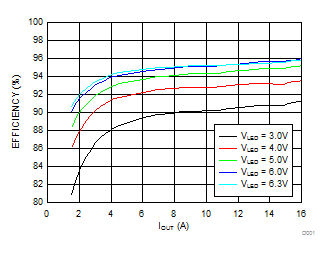

GUID-770DF904-0EEF-42D1-8624-44B22D532881-low.gifFigure 7-10 Illumination Driver Plus Power FETs Efficiency (VILLUM_A_IN= 12 V)

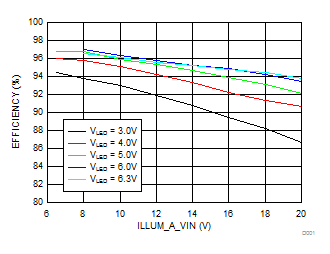

GUID-3D681F27-5D7E-4D75-A62C-C368D51E820F-low.gifFigure 7-11 Illumination Driver Plus Power FETs Efficiency vs VILLUM_A_IN (IOUT = 16 A)
