5.7 Switching Characteristics

TA = 25 °C, VDD = 3.6 V (unless otherwise noted)
PARAMETERTEST CONDITIONSMINTYPMAXUNIT
t(on)Device startup timefrom shutdown standby1ms
t(start)Waveform startup timefrom trigger to output signal1ms
fO(PWM)PWM output frequency (in OUT+ and OUT-)20.5kHz

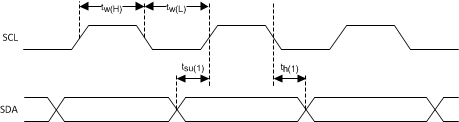

DRV2624 SCL and SDA TimingFigure 5-1 SCL and SDA Timing

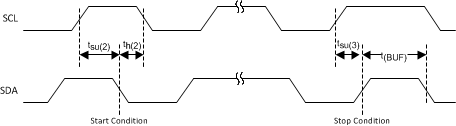

DRV2624 Timing for Start and Stop ConditionsFigure 5-2 Timing for Start and Stop Conditions
