8.2.1.3 Application Curves

VDD = 3.6 VC(LOAD) = OpenVPVDD = 105 V
G = 40.7 dB

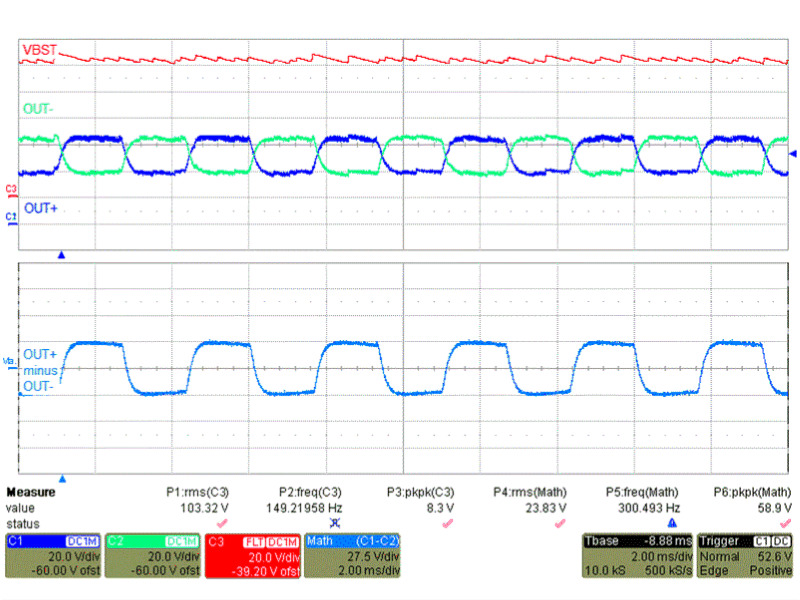

Figure 8-6 AC Coupled Differential Output
VDD = 3.6 VC(LOAD) = OpenVPVDD = 105 V
G = 28.8 dB
Figure 8-8 DC Coupled Differential Output
VDD = 5 VC(LOAD) = 22 nFVHV = 0 to 500 V
Figure 8-10 High Voltage Mode without FET Pulldown
VDD = 3.6 VC(LOAD) = OpenVPVDD = 105 V
G = 28.8 dB
Figure 8-7 AC Coupled Differential Output
VDD = 5 VC(LOAD) = 22 nFVHV = 0 to 500 V
Figure 8-9 High Voltage Mode with FET Pulldown
VDD = 5 VC(LOAD) = 22 nFVHV = 0 to 500 V
Figure 8-11 High Voltage Mode Arbitrary Waveform
