7.3.3 Hall Element Location

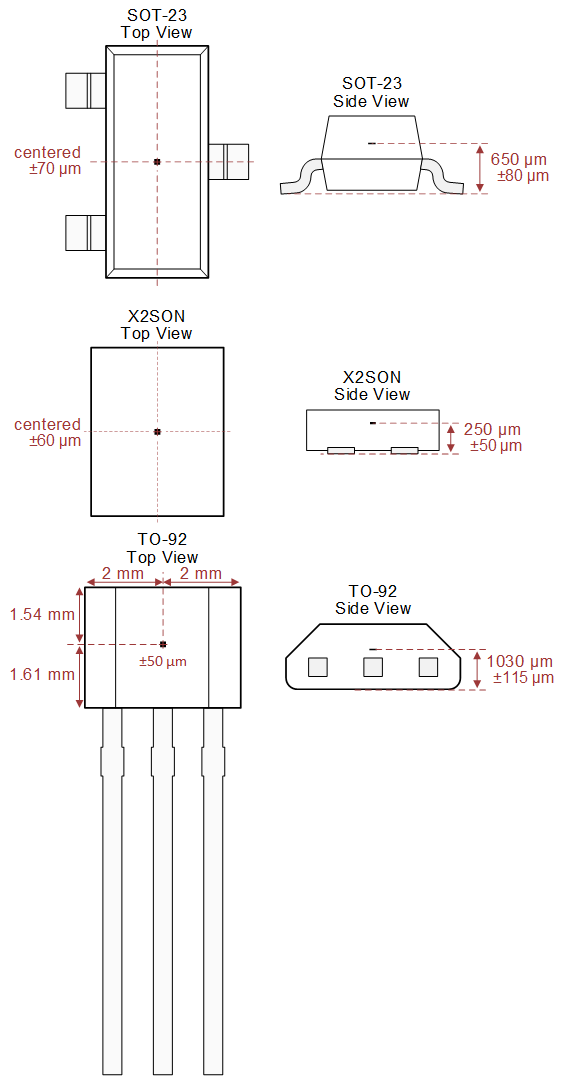

The sensing element inside the device is in the center of both packages when viewed from the top. Figure 7-8 shows the tolerances and side-view dimensions.

DRV5032 Hall Element Location Figure 7-8 Hall Element Location
