6.3.1.2.6 TDRIVE Gate Drive Timing Control

The device integrates TDRIVE gate drive timing control to prevent parasitic dV/dt gate turn on of external MOSFETs. Strong pull-down ISTRONG current is enabled on the opposite MOSFET gate whenever a MOSFET is switching. The strong pulldown lasts for the TDRIVE duration. This feature helps to remove parasitic charge that couples into the MOSFET gate when the half-bridge switch-node voltage slews rapidly.

DRV8334 TDRIVE Gate Drive Timing Control (DEADT_MODE = 0b) Figure 6-6 TDRIVE Gate Drive Timing Control (DEADT_MODE = 0b)

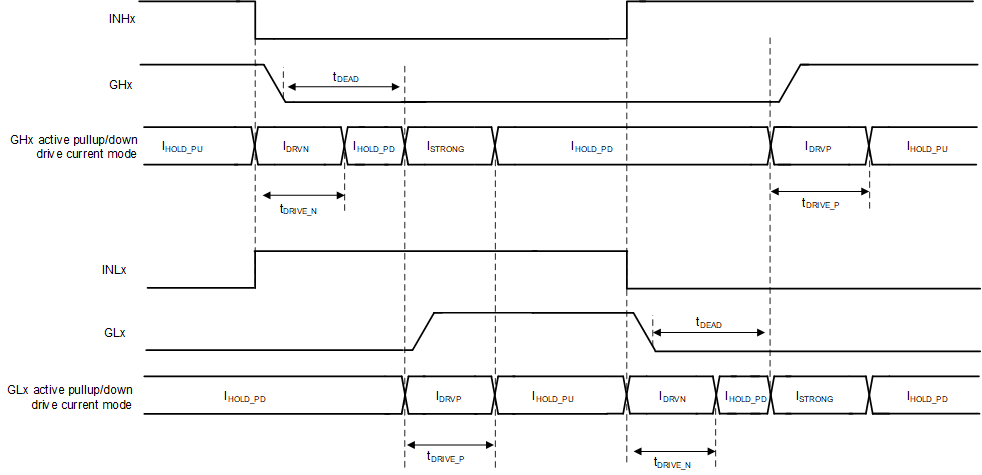

DRV8334 TDRIVE Gate Drive Timing Control (DEADT_MODE = 1b) Figure 6-7 TDRIVE Gate Drive Timing Control (DEADT_MODE = 1b)
