7 Parameter Measurement Information
Figure 3. Serializer Input Checkerboard Pattern
Figure 4. Deserializer Output Checkerboard Pattern
Figure 5. Serializer LVDS Output Load and Transition Times
Figure 6. Serializer Input Clock Transition Times
Figure 7. Serializer Setup and Hold Times

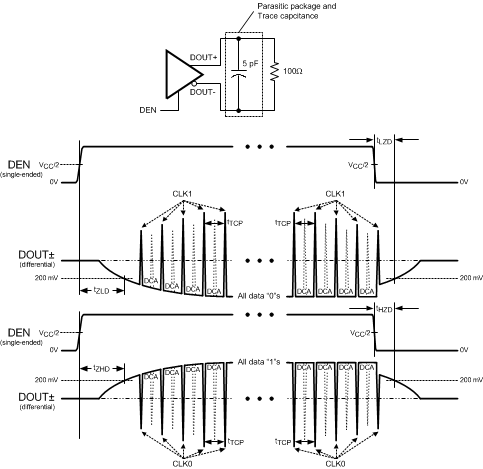

Figure 8. Serializer TRI-STATE Test Circuit and Delay

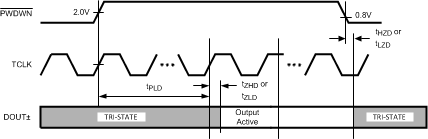

Figure 9. Serializer PLL Lock Time and TPWDNB TRI-STATE Delays

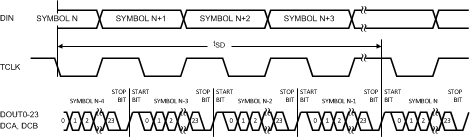

Figure 10. Serializer Delay
Figure 11. Transmitter Output Eye Opening (TxOUT_E_O)
VOD = (DOUT+) – (DOUT -)
Differential output signal is shown as (DOUT+) – (DOUT -) with the device in data transfer mode.
Figure 12. Serializer VOD Diagram
Differential output signal is shown as (DOUT+) – (DOUT -) with the device in data transfer mode.
Figure 13. Deserializer LVCMOS/LVTTL Output Load and Transition Times

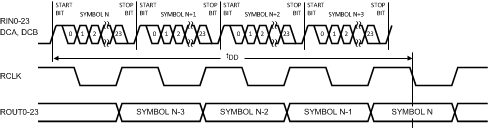

Figure 14. Deserializer Delay
CL includes instrumentation and fixture capacitance within 6 cm of ROUT[23:0].

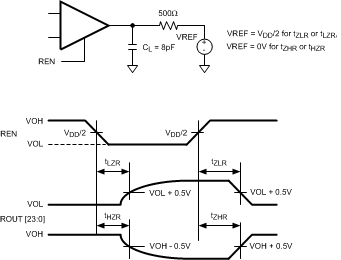

Figure 15. Deserializer TRI-STATE Test Circuit and Timing

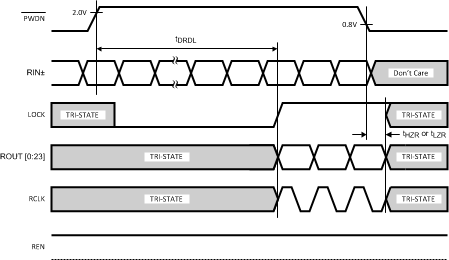

Figure 16. Deserializer PLL Lock Times and RPWDNB TRI-STATE Delay
Figure 17. Deserializer Setup and Hold Times
RxIN_TOL_L is the ideal noise margin on the left of the figure with respect to ideal.
RxIN_TOL_R is the ideal noise margin on the right of the figure with respect to ideal.
Figure 18. Receiver Input Tolerance (RxIN_TOL) and Sampling Window
RxIN_TOL_R is the ideal noise margin on the right of the figure with respect to ideal.
