5.8 Typical Characteristics

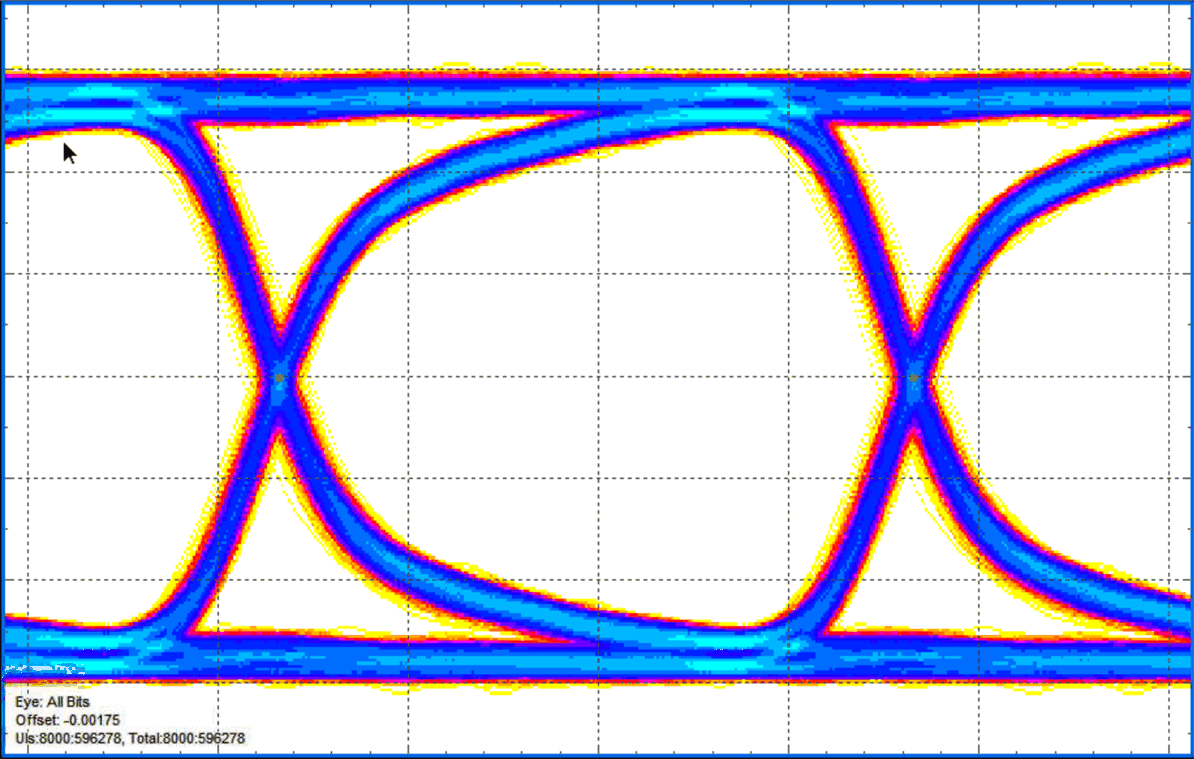

GUID-71B200D7-EC9C-435D-BF3F-BEC4AB53D0B4-low.gifFigure 5-3 Eye Diagram for FPD-Link III Forward Channel from Serializer Output. Vertical Scale: 100mV/DIV, Horizontal Scale: 100ps/DIV
