7.4 Device Functional Modes

The ISO7220x and ISO7221x family of devices functional modes are listed in Table 7-2.

Table 7-2 ISO7220x or ISO7221x Function Table
INPUT SIDE VCC(1)OUTPUT SIDE VCCINPUT (IN)OUTPUT (OUT)
PUPUHH
LL
OpenH
PDPUXH
XPDXUndetermined
(1) PU = Powered Up (VCC ≥ 3.0 V), PD = Powered Down (VCC ≤ 2.5 V), X = Irrelevant, H = High Level,
L = Low Level

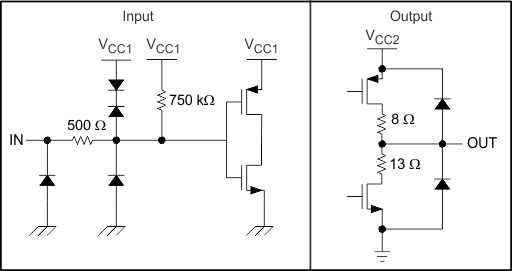

ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M Device I/O SchematicsFigure 7-1 Device I/O Schematics
