9.1.1 Error Signaling Module

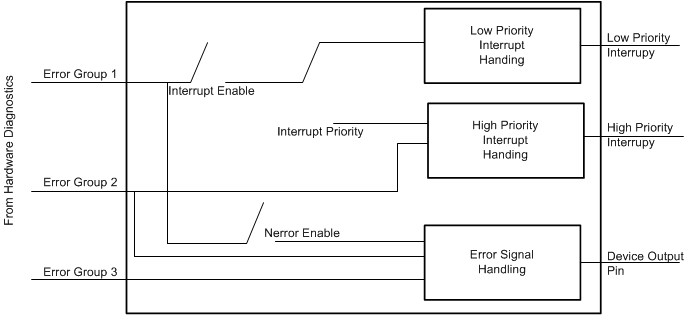

When a diagnostic detects a fault, the error must be indicated. IWR6843 architecture provides aggregation of fault indication from internal diagnostic mechanisms using a peripheral logic known as the error signaling module (ESM). The ESM provides mechanisms to classify faults by severity and allows programmable error response. Below is the high level block diagram for ESM module.

IWR6843 IWR6443 ESM Module DiagramFigure 9-1 ESM Module Diagram
