8.2 Typical Applications

The LM46001 only requires a few external components to convert from a wide range of supply voltage to output voltage. Figure 44 shows a basic schematic when BIAS is connected to VOUT . This is recommended for VOUT ≥ 3.3 V. For VOUT < 3.3 V, connect BIAS to ground, as shown in Figure 45.

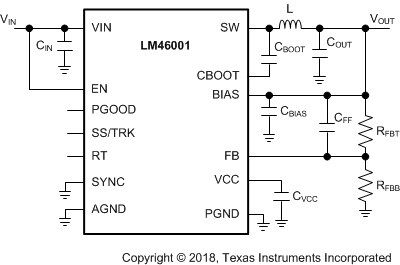

LM46001 Sch_basic01.gifFigure 44. LM46001 Basic Schematic for
VOUT ≥ 3.3 V, tie BIAS to VOUT
LM46001 Sch_basic02.gifFigure 45. LM46001 Basic Schematic for
VOUT < 3.3 V, tie BIAS to Ground

The LM46001 also integrates a full list of optional features to aid system design requirements, such as precision enable, VCC UVLO, programmable soft-start, output voltage tracking, programmable switching frequency, clock synchronization and power-good indication. Each application can select the features for a more comprehensive design. A schematic with all features utilized is shown in Figure 46.

LM46001 Sch_full_feature.gif
Figure 46. LM46001 Schematic with All Features

The external components have to fulfill the needs of the application, but also the stability criteria of the device control loop. The LM46001 is optimized to work within a range of external components. The LC-output-filter inductance and capacitance must be considered in conjunction, creating a double pole, responsible for the corner frequency of the converter. Table 2 can be used to simplify the output filter component selection.

Table 2. L, COUT and CFF Typical Values

FS (kHz)L (µH)(1)COUT (µF) (2)CFF (pF) (3)(4)RT (kΩ)RFBB (kΩ) (3)(4)
VOUT = 1 V
200 18 500 none 200 100
500 6.8 330 none 80.6 or open 100
1000 3.3 180 none 39.2 100
2200 1.5 100 none 17.8 100
VOUT = 3.3 V
200 47 220 44 200 442
500 18 100 33 80.6 or open 442
1000 10 47 18 39.2 442
2200 4.7 27 12 17.8 442
VOUT = 5 V
200 56 150 66 200 249
500 27 66 33 80.6 or open 249
1000 15 33 22 39.2 249
2200 6.8 22 18 17.8 249
VOUT = 12 V
200 100 33 see note (5) 200 93.1
500 47 22 47 80.6 or open 93.1
1000 22 15 33 39.2 93.1
VOUT = 24 V
200 180 22 see note (5) 200 44.2
500 82 15 see note (5) 80.6 or open 44.2
1000 47 10 see note (5) 39.2 44.2
(1) Inductor values are calculated based on typical VIN = 24 V. For VOUT = 24 V, VIN = 48 V.
(2) All the COUT values are after derating. Add more when using ceramics
(3) RFBT = 0 Ω for VOUT = 1 V. RFBT = 1 MΩ for all other VOUT settings.
(4) For designs with RFBT other than 1 MΩ, adjust CFF such that (CFF × RFBT) is unchanged and adjust RFBB such that (RFBT / RFBB) is unchanged.
(5) High ESR COUT gives enough phase boost, and CFF might not be needed.
