5.7 Typical Characteristics

Unless otherwise specified the following conditions apply: VIN = 12V, fSW = 500kHz, L = 5.6µH, COUT = 47µF x 2, TA = 25°C.

LMR14030-Q1 Efficiency vs. Load Current
VOUT = 5VfSW = 500kHz
Figure 5-1 Efficiency vs. Load Current
LMR14030-Q1 Efficiency vs. Load Current
VOUT = 3.3VfSW = 1MHz
Figure 5-3 Efficiency vs. Load Current
LMR14030-Q1 Load Regulation
VOUT = 5VfSW = 500kHz
Figure 5-5 Load Regulation

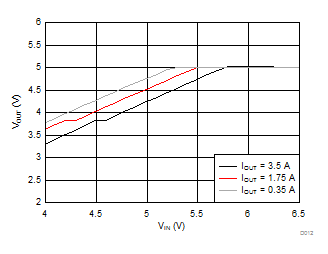

LMR14030-Q1 Dropout Curve
VOUT = 5VfSW = 500kHz
Figure 5-7 Dropout Curve
LMR14030-Q1 Dropout Curve
VOUT = 5VfSW = 2.2MHz
Figure 5-9 Dropout Curve

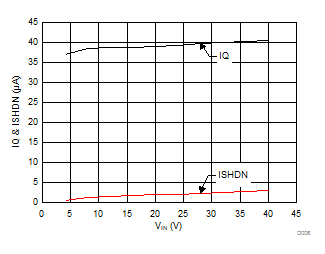

LMR14030-Q1 Shut-down Current and Quiescent Current
Figure 5-11 Shut-down Current and Quiescent Current
LMR14030-Q1 Efficiency vs. Load Current
VOUT = 5VfSW = 1MHz
Figure 5-2 Efficiency vs. Load Current
LMR14030-Q1 Efficiency vs. Load Current
VOUT = 3.3VfSW = 2.2MHz
Figure 5-4 Efficiency vs. Load Current
LMR14030-Q1 Frequency vs VFB
Figure 5-6 Frequency vs VFB

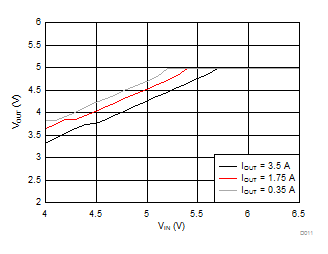

LMR14030-Q1 Dropout Curve
VOUT = 5VfSW = 1MHz
Figure 5-8 Dropout Curve

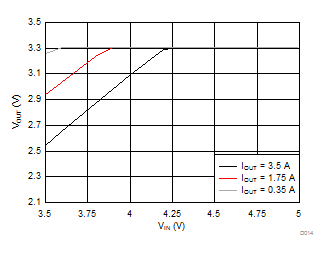

LMR14030-Q1 Dropout Curve
VOUT = 3.3VfSW = 2.2MHz
Figure 5-10 Dropout Curve

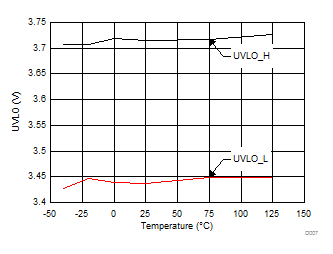

LMR14030-Q1 UVLO Threshold
IOUT = 0A
Figure 5-12 UVLO Threshold
