6.9 Typical Characteristics

Unless otherwise specified the following conditions apply: TA = 25°C and VIN = 24 V.

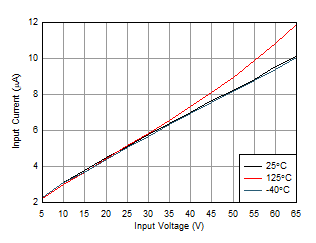

LMR36510 Shutdown Supply Current
EN = 0 V
Figure 6-1 Shutdown Supply Current
LMR36510 IPEAK-MIN
IOUT = 0 A VOUT = 3.3 V ƒSW = 400 kHz
See Figure 8-22
Figure 6-2 IPEAK-MIN
