8.43 Ports PU.0 and PU.1

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
PARAMETERTEST CONDITIONSMINMAXUNIT
VOHHigh-level output voltageVUSB = 3.3 V ±10%, IOH = –25 mA,
see Figure 8-18 for typical characteristics		2.4V
VOLLow-level output voltageVUSB = 3.3 V ±10%, IOL = 25 mA,
see Figure 8-17 for typical characteristics		0.4V
VIHHigh-level input voltageVUSB = 3.3 V ±10%,
see Figure 8-19 for typical characteristics		2.0V
VILLow-level input voltageVUSB = 3.3 V ±10%,
see Figure 8-19 for typical characteristics		0.8V

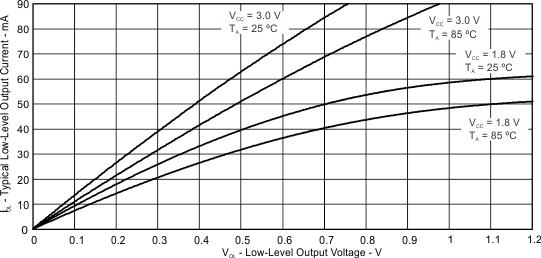

GUID-B89D4239-CC30-4296-8C34-C4BD1DF7E542-low.gifFigure 8-17 Ports PU.0, PU.1 Typical Low-Level Output Characteristics
GUID-D0472803-006C-4A61-ADF3-162D43472684-low.gifFigure 8-18 Ports PU.0, PU.1 Typical High-Level Output Characteristics
GUID-5618B621-F6AE-40BB-AB11-86D908579EB8-low.gifFigure 8-19 Ports PU.0, PU.1 Typical Input Threshold Characteristics
