9.9.13.11 Port P8.0 and P8.1 Input/Output With Schmitt Trigger

Figure 9-13 shows the port schematic. Table 9-24 summarizes the selection of the pin functions.

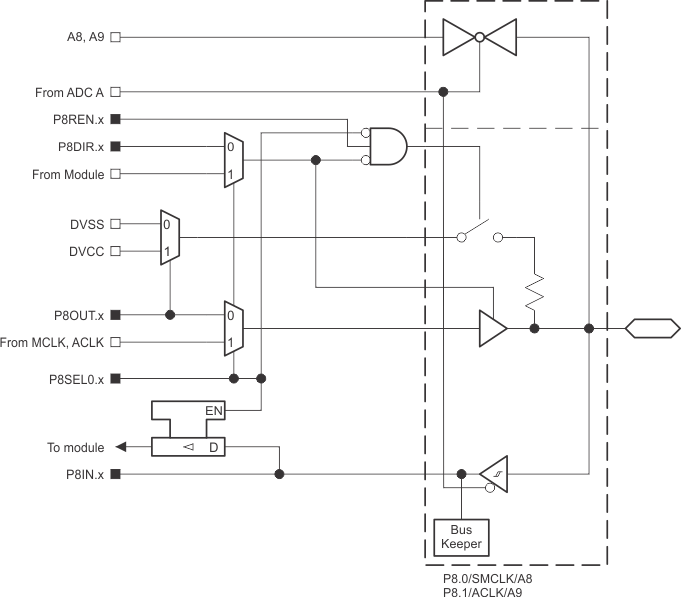

GUID-2D324C98-88FC-47E7-8FA8-CBA29B10E2AE-low.gifFigure 9-13 Port P8.0 and P8.1 Input/Output With Schmitt Trigger
Table 9-24 Port P8.0 and P8.1 Pin Functions
PIN NAME (P8.x)xFUNCTIONCONTROL BITS AND SIGNALS(1)
P8DIR.xP8SEL0.xADCPCTLx(2)
P8.0/SMCLK/A80P8.0 (I/O)I: 0; O: 100
VSS010
SMCLK1
A8XX1 (x = 8)
P8.1/ACLK/A91P8.1 (I/O)I: 0; O: 100
VSS010
ACLK1
A9XX1 (x = 9)
(1) X= don't care
(2) Setting the ADCPCTLx bit in SYSCFG2 register will disable both the output driver and input Schmitt trigger to prevent leakage when analog signals are applied.
