9.13.14 Port P6 (P6.0 to P6.7) Input/Output With Schmitt Trigger

Figure 9-15 shows the port diagram. Table 9-32 summarizes the selection of the pin functions.

Functional representation only.

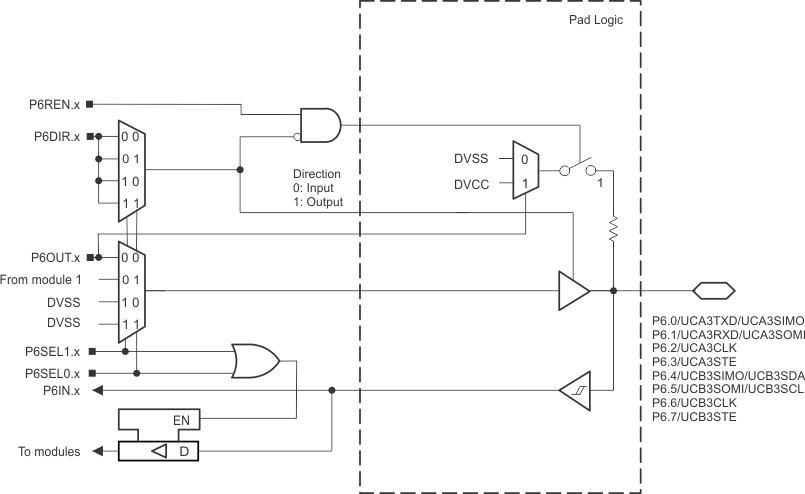

Figure 9-15 Port P6 (P6.0 to P6.7) Diagram
Table 9-32 Port P6 (P6.0 to P6.7) Pin Functions
PIN NAME (P6.x) x FUNCTION CONTROL BITS AND SIGNALS(1)
P6DIR.x P6SEL1.x P6SEL0.x
P6.0/UCA3TXD/UCA3SIMO 0 P6.0 (I/O) 0 = Input, 1 = Output 0 0
UCA3TXD/UCA3SIMO X(3) 0 1
N/A 0 1 X
Internally tied to DVSS 1
P6.1/UCA3RXD/UCA3SOMI 1 P6.1 (I/O) 0 = Input, 1 = Output 0 0
UCA3RXD/UCA3SOMI X(3) 0 1
N/A 0 1 X
Internally tied to DVSS 1
P6.2/UCA3CLK 2 P6.2 (I/O) 0 = Input, 1 = Output 0 0
UCA3CLK X(3) 0 1
N/A 0 1 X
Internally tied to DVSS 1
P6.3/UCA3STE 3 P6.3 (I/O) 0 = Input, 1 = Output 0 0
UCA3STE X(3) 0 1
N/A 0 1 X
Internally tied to DVSS 1
P6.4/UCB3SIMO/UCB3SDA 4 P6.4 (I/O) 0 = Input, 1 = Output 0 0
UCB3SIMO/UCB3SDA X(2) 0 1
N/A 0 1 X
Internally tied to DVSS 1
P6.5/UCB3SOMI/UCB3SCL 5 P6.5 (I/O) 0 = Input, 1 = Output 0 0
UCB3SOMI/UCB3SCL X(2) 0 1
N/A 0 1 X
Internally tied to DVSS 1
P6.6/UCB3CLK 6 P6.6 (I/O) 0 = Input, 1 = Output 0 0
UCB3CLK X(2) 0 1
N/A 0 1 X
Internally tied to DVSS 1
P6.7/UCB3STE 7 P6.7 (I/O) 0 = Input, 1 = Output 0 0
UCB3STE X(2) 0 1
N/A 0 1 X
Internally tied to DVSS 1
(1) X = Don't care
(2) Direction controlled by eUSCI_B3 module.
(3) Direction controlled by eUSCI_A3 module.
