Negative Reference Voltage

For applications requiring a negative and positive reference voltage, the REF70 and OPA211 can be used to provide a dual-supply reference from a 5-V supply. Figure 9-2 shows the REF70 used to provide a 2.5-V supply reference voltage and -2.5V negative reference voltage. The low noise performance of the REF70 complements the low noise of the OPA211 to provide an accurate solution for split-supply applications. Take care to match the temperature coefficients of R1 and R2.

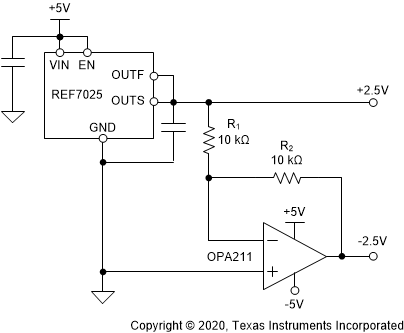

GUID-20201209-CA0I-ZXVW-TLX1-B5FC7H4SXVJF-low.gif Figure 9-2 The REF70 and OPA211 Create Positive and Negative Reference Voltages
