6.9 Typical Characteristics

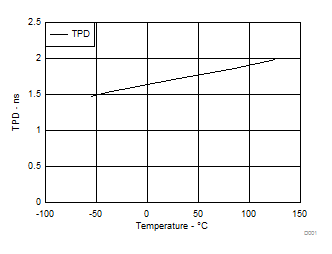

GUID-8BDFE541-AA18-4A4B-9C1C-F048BC84CB27-low.gifFigure 6-1 TPD Across Temperature at 3.3V Vcc

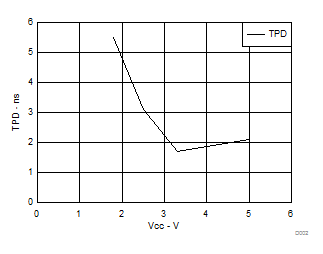

GUID-308B21A1-BA84-4265-9542-4B6A2A88C11D-low.gifFigure 6-2 TPD Across Vcc at 25°C
