SLLSFO2B December   2022  – March 2024 THVD2410V , THVD2412V , THVD2450V , THVD2452V

PRODUCTION DATA

  1.   1
  2. Features
  3. Applications
  4. Description
  5. Pin Configuration and Functions
  6. Specifications
    1. 5.1  Absolute Maximum Ratings
    2. 5.2  ESD Ratings
    3. 5.3  ESD Ratings [IEC]
    4. 5.4  Recommended Operating Conditions
    5. 5.5  Thermal Information
    6. 5.6  Power Dissipation
    7. 5.7  Electrical Characteristics
    8. 5.8  Switching Characteristics_250 kbps
    9. 5.9  Switching Characteristics_1 Mbps
    10. 5.10 Switching Characteristics_20 Mbps
    11. 5.11 Switching Characteristics_50 Mbps
    12. 5.12 Typical Characteristics
  7. Parameter Measurement Information
  8. Detailed Description
    1. 7.1 Overview
    2. 7.2 Functional Block Diagrams
    3. 7.3 Feature Description
      1. 7.3.1 ±70 V Fault Protection
      2. 7.3.2 Integrated IEC ESD and EFT Protection
      3. 7.3.3 Driver Overvoltage and Overcurrent Protection
      4. 7.3.4 Enhanced Receiver Noise Immunity
      5. 7.3.5 Receiver Fail-Safe Operation
      6. 7.3.6 Low-Power Shutdown Mode
    4. 7.4 Device Functional Modes
  9. Application and Implementation
    1. 8.1 Application Information
    2. 8.2 Typical Application
      1. 8.2.1 Design Requirements
        1. 8.2.1.1 Data Rate and Bus Length
        2. 8.2.1.2 Stub Length
        3. 8.2.1.3 Bus Loading
        4. 8.2.1.4 Transient Protection
      2. 8.2.2 Detailed Design Procedure
      3. 8.2.3 Application Curves
    3. 8.3 Power Supply Recommendations
    4. 8.4 Layout
      1. 8.4.1 Layout Guidelines
      2. 8.4.2 Layout Example
  10. Device and Documentation Support
    1. 9.1 Device Support
      1. 9.1.1 Third-Party Products Disclaimer
    2. 9.2 Receiving Notification of Documentation Updates
    3. 9.3 Support Resources
    4. 9.4 Trademarks
    5. 9.5 Electrostatic Discharge Caution
    6. 9.6 Glossary
  11. 10Revision History
  12. 11Mechanical, Packaging, and Orderable Information

Package Options

Mechanical Data (Package|Pins)
Thermal pad, mechanical data (Package|Pins)
Orderable Information

Parameter Measurement Information

GUID-20220316-SS0I-QDVF-35WL-X8PNP22TXVZM-low.svg Figure 6-1 Measurement of Driver Differential Output Voltage With Common-Mode Load
GUID-20220316-SS0I-H3LN-TWHF-DDQ9064NQNQT-low.svg Figure 6-2 Measurement of Driver Differential and Common-Mode Output With RS-485 Load
GUID-20220316-SS0I-3ZZB-RLFK-J2X5FPXCLRGW-low.svg Figure 6-3 Measurement of Driver Differential Output Rise and Fall Times and Propagation Delays
GUID-20220316-SS0I-DRF3-G9Z4-6XW7KV9DHWJN-low.svg Figure 6-4 Measurement of Driver Enable and Disable Times With Active High Output and Pull-Down Load
GUID-20220316-SS0I-2DC0-XXHL-C2VNCDGNM1PT-low.svg Figure 6-5 Measurement of Driver Enable and Disable Times With Active Low Output and Pull-up Load

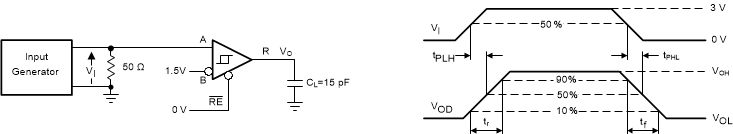

GUID-FAA22E6B-E5BF-4C24-BCF9-66EF45507394-low.gif Figure 6-6 Measurement of Receiver Output Rise and Fall Times and Propagation Delays
GUID-20220316-SS0I-QNNV-PR48-TFDHK79D0JZ7-low.svg Figure 6-7 Measurement of Receiver Enable/Disable Times With Driver Enabled
GUID-20220316-SS0I-7PKC-XJXH-SM7BKVH0Q85S-low.svg Figure 6-8 Measurement of Receiver Enable Times With Driver Disabled
GUID-20220316-SS0I-S4G7-L7TH-LZRWFK0CFZF9-low.svg Figure 6-9 Measurement of Fail-Safe Delay
