SNVSCZ1 January   2025 TLC69637-Q1

ADVANCE INFORMATION

  1.   1
  2. 1Features
  3. 2Applications
  4. 3Description
  5. 4Device Comparison
  6. 5Device and Documentation Support
    1. 5.1 Receiving Notification of Documentation Updates
    2. 5.2 Support Resources
    3. 5.3 Trademarks
    4. 5.4 Electrostatic Discharge Caution
    5. 5.5 Glossary
  7. 6Revision History
  8. 7Mechanical, Packaging, and Orderable Information
    1. 7.1 Tape and Reel Information

Package Options

Mechanical Data (Package|Pins)
Thermal pad, mechanical data (Package|Pins)
Orderable Information

7.1 Tape and Reel Information

TLC69637-Q1
DevicePackage
Type		Package DrawingPinsSPQReel
Diameter (mm)		Reel
Width W1 (mm)		A0
(mm)		B0
(mm)		K0
(mm)		P1
(mm)		W
(mm)		Pin1
Quadrant
TLC69637QDCARQ1HTSSOPDCA56250033024.48.615.61.81224Q1
TLC69637QRTQRQ1 VQFN RTQ 56 3500 330 16.4 8.3 8.3 1.1 12 16 Q2
TLC69637QDFDRQ1 HTSSOP DFD 56 2500 330 24.4 8.9 14.7 1.4 12 24 Q1

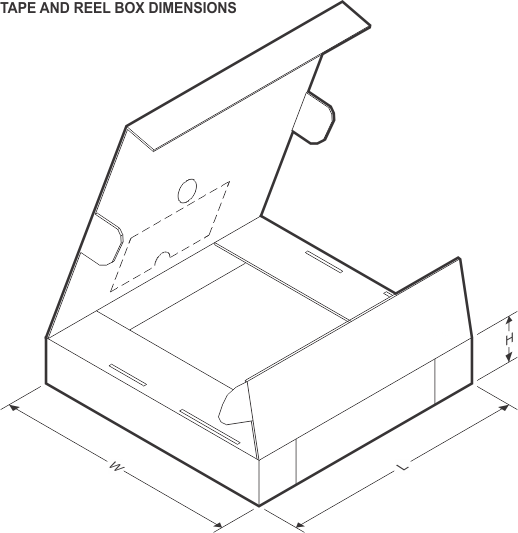

TLC69637-Q1
DevicePackage TypePackage DrawingPinsSPQLength (mm)Width (mm)Height (mm)
TLC69637QDCARQ1HTSSOPDCA56250036736745
TLC69637QRTQRQ1 VQFN RTQ 56 3500 367 367 35
TLC69637QDFDRQ1 HTSSOP DFD 56 2500 350 350 43
