8.1 Application Information

The TLV301x-Q1 and TLV301xB-Q1 comparator family with on-chip 1.242V series reference with the choice of either open-drain or push-pull output stages.

A typical supply current of 2.4μA and small packaging combined with 1.65V supply requirements make the TLV301xB-Q1 devices an excellent choice for battery and portable designs.

Shown below are the typical connections for the TLV3012-Q1 device.

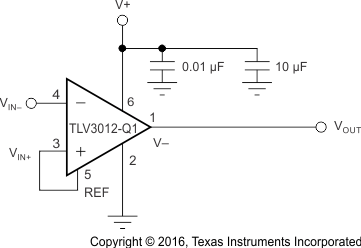

TLV3011-Q1 TLV3012-Q1 TLV3011B-Q1 TLV3012B-Q1 Basic ConnectionsFigure 8-1 Basic Connections
