7.9.4.6.2.6 McBSP as SPI Master or Slave Switching Characteristics (CLKSTP = 10b, CLKXP = 1)
NO.PARAMETERMASTERSLAVEUNIT
MINMAXMINMAX
M43th(CKXH-FXL)Hold time, FSX low after CLKX high2P(1)ns
M44td(FXL-CKXL)Delay time, FSX low to CLKX lowPns
M47tdis(FXH-DXHZ)Disable time, DX high impedance following last data bit from FSX high66P + 6ns
M48td(FXL-DXV)Delay time, FSX low to DX valid64P + 6ns
(1) 2P = 1/CLKG

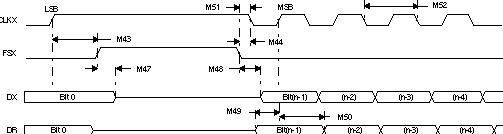

GUID-BE9F3340-D425-421B-96A6-C31F89858451-low.gif Figure 7-25 McBSP Timing as SPI Master or Slave: CLKSTP = 10b, CLKXP = 1
