5.5 Typical Characteristics

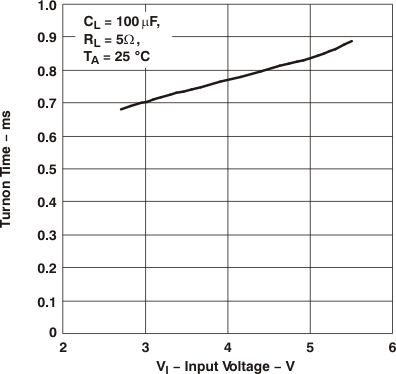

Figure 5-1 Turnon Time vs Input
Voltage
Figure 5-3 Rise Time vs Input
Voltage
Figure 5-5 TPS2062A, TPS2066A Supply
Current, Output Enabled vs Junction Temperature

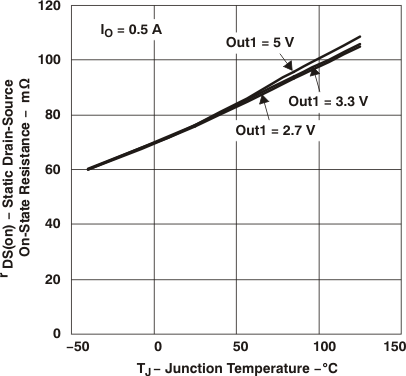

Figure 5-7 Static Drain-Source
On-State Resistance vs Junction Temperature
Figure 5-9 Threshold Trip Current vs
Input Voltage
Figure 5-11 Current-Limit Response vs
Peak Current
Figure 5-2 Turnoff Time vs Input
Voltage
Figure 5-4 Fall Time vs Input
Voltage
Figure 5-6 TPS2062A, TPS2066A Supply
Current, Output Disabled vs Junction Temperature

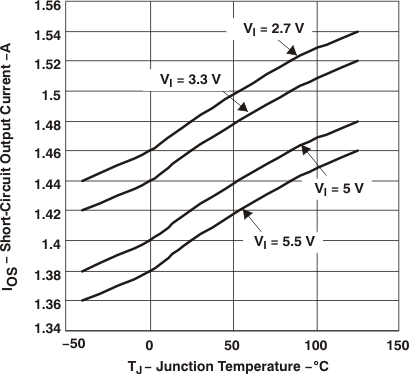

Figure 5-8 Short-Circuit Output
Current vs Junction Temperature
Figure 5-10 Undervoltage Lockout vs
Junction Temperature
