10.2.3 Application Curves

Table 10-6 Components for Application Characteristic Curves (1)
REFERENCEDESCRIPTIONPART NUMBERMANUFACTURERCOMMENT
TPS63802 2 A Buck-Boost Converter (2 mm x 3 mm QFN)TPS63802DLATexas Instruments
L10.47 µH, 4 mm x 4 mm x 1.5 mm, 5.4 A, 7.6 mΩXFL4015-471MECoilcraft
C110 µF, 0603, Ceramic Capacitor, ±20%, 6.3 VGRM188R60J106ME84Murata
C21x 22 µF, 0603, Ceramic Capacitor, ±20%, 6.3 VGRM188R60J226MEA0MurataVO ≤ 3.6 V
C22x 22 µF, 0603, Ceramic Capacitor, ±20%, 6.3 VGRM188R60J226MEA0MurataVO > 3.6 V
R1511 kΩ, 0603 Resistor, 1%, 100 mWStandardStandardVO = 3.3 V
R1562 kΩ, 0603 Resistor, 1%, 100 mWStandardStandardVO = 3.6 V
R1806 kΩ, 0603 Resistor, 1%, 100 mWStandardStandardVO = 5 V
R291 kΩ, 0603 Resistor, 1%, 100 mWStandardStandard
R3100 kΩ, 0603 Resistor, 1%, 100 mWStandardStandard
Table 10-7 Typical Characteristics Curves
PARAMETER CONDITIONS FIGURE
Output Current Capability
Typical Output Current Capability versus Input Voltage VO = 3.3 V Figure 10-2
Switching Frequency
Typical Inductor Switching Frequency versus Input Voltage IO = 0 A, MODE = High Figure 10-3
Typical Inductor Burst Frequency versus Output Current VO = 3.3 V Figure 10-4
Efficiency
Efficiency versus Output Current (PFM/PWM) VI = 2.5 V to 4.2 V, VO = 3.3 V, MODE = Low Figure 10-5
Efficiency versus Output Current (PWM only) VI = 2.5 V to 4.2 V, VO = 3.3 V, MODE = High Figure 10-6
Efficiency versus Output Current (PFM/PWM) VI = 1.8 V to 5 V, VO = 3.3 V, MODE = Low Figure 10-7
Efficiency versus Output Current (PWM only) VI = 1.8 V to 5 V, VO = 3.3 V, MODE = High Figure 10-8
Efficiency versus. Input Voltage (PFM/PWM) VO = 3.3 V, MODE = Low Figure 10-9
Efficiency versus Input Voltage (PWM only) IO = 1 A, MODE = High Figure 10-10
Regulation Accuracy
Load Regulation, PWM Operation VO = 3.3 V, MODE = High Figure 10-11
Load Regulation, PFM/PWM Operation VO = 3.3 V, MODE = Low Figure 10-12
Line Regulation, PWM Operation IO = 1 A, MODE = High Figure 10-13
Line Regulation, PFM/PWM Operation IO = 1 A, MODE = Low Figure 10-14
Switching Waveforms
Switching Waveforms, PFM Boost Operation VI = 2.3 V, VO = 3.3 V, MODE = Low Figure 10-15
Switching Waveforms, PFM Buck-Boost Operation VI = 3.3 V, VO = 3.3 V, MODE = Low Figure 10-16
Switching Waveforms, PFM Buck Operation VI = 4.3 V, VO = 3.3 V, MODE = Low Figure 10-17
Switching Waveforms, PWM Boost Operation VI = 2.3 V, VO = 3.3 V, MODE = High Figure 10-18
Switching Waveforms, PWM Buck-Boost Operation VI = 3.3 V, VO = 3.3 V, MODE = High Figure 10-19
Switching Waveforms, PWM Buck Operation VI = 4.3 V, VO = 3.3 V, MODE = High Figure 10-20
Transient Performance
Load Transient, PFM/PWM Boost Operation VI = 2.5 V, VO = 3.3 V, Load = 100 mA to 1A, MODE = Low Figure 10-21
Load Transient, PFM/PWM Buck-Boost Operation VI = 3.3 V, VO = 3.3 V, Load = 100 mA to 1A, MODE = Low Figure 10-22
Load Transient, PFM/PWM Buck Operation VI = 4.2 V, VO = 3.3V, Load = 100 mA to 1A, MODE = Low Figure 10-23
Load Transient, PWM Boost Operation VI = 2.5 V, VO = 3.3 V, Load = 100 mA to 1A, MODE = High Figure 10-24
Load Transient, PWM Buck-Boost Operation VI = 3.3 V, VO = 3.3 V, Load = 100 mA to 1A, MODE = High Figure 10-25
Load Transient, PWM Buck Operation VI = 4.2 V, VO = 3.3 V, Load = 100 mA to 1A, MODE = High Figure 10-26
Line Transient, PWM Operation VI = 2.3 V to 4.3 V, VO = 3.3 V, Load = 0.5 A , MODE = Low Figure 10-27
Line Transient, PWM Operation VI = 2.3 V to 4.3 V, VO = 3.3 V, Load = 1 A , MODE = Low Figure 10-28
Line Transient, PWM Operation VI = 3 V to 3.6 V, VO = 3.3 V, Load = 0.5 A , MODE = Low Figure 10-29
Start-up
Start-up Behavior from Rising Enable, PFM Operation VI = 2.2 V, VO = 3.3 V, Load = 10 mA, MODE = Low Figure 10-30
Start-up Behavior from Rising Enable, PWM Operation VI = 2.2 V, VO = 3.3 V, Load = 10 mA, MODE = High Figure 10-31
MODE = High

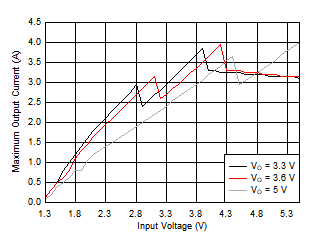

Figure 10-2 Typical Output Current Capability versus Input Voltage
VO = 3.6 VMODE = Low
Figure 10-4 Typical Inductor Burst Frequency versus Output Current
VO = 3.3 VMODE = High

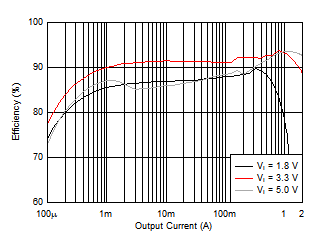

Figure 10-6 Efficiency versus Output Current (PWM Only)
VO = 3.3 VMODE = High
Figure 10-8 Efficiency versus Input Voltage (PWM Only)
IO = 1 AMODE = Low

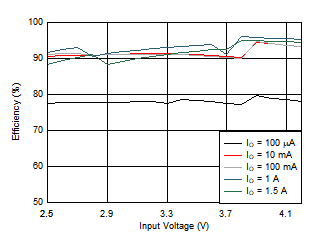

Figure 10-10 Efficiency versus Input Voltage (PWM Only)
VO = 3.3 VMODE = Low

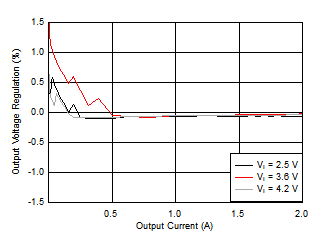

Figure 10-12 Load Regulation (PFM/PWM)
IO = 1 AMODE = High
Figure 10-14 Line Regulation (PFM/PWM)
VI = 3.3 V, VO = 3.3 VMODE = LowIO = 40 mA
Figure 10-16 Switching Waveforms, PFM Buck-Boost Operation
VI = 2.3 V, VO = 3.3 VMODE = LowIO = 2 A
Figure 10-18 Switching Waveforms, PWM Boost Operation
VI = 4.2 V, VO = 3.3 VMODE = LowIO = 2 A
Figure 10-20 Switching Waveforms, PWM Buck Operation
VI = 3.3 V, VO = 3.3 VIO from 100 mA to 1 A tr = 1 µs, tf = 1 µs MODE = Low
Figure 10-22 Load Transient, PFM/PWM Buck-Boost Operation
VI = 2.5 V, VO = 3.3 VIO from 100 mA to 1 A tr = 1 µs, tf = 1 µs MODE = High
Figure 10-24 Load Transient, PWM Boost Operation
VI = 5 V, VO = 3.3 VIO from 100 mA to 1 A tr = 1 µs, tf = 1 µs MODE = High
Figure 10-26 Load Transient, PWM Buck Operation
IO = 1 AVI from 2.2 V to 4.2 V tr = 1 µs, tf = 1 µs MODE = High
Figure 10-28 Line Transient, PWM Operation
VI = 4.2 V, VO = 3.3 V MODE = Low 100 mΩ resistive load
Figure 10-30 Start-up Behavior from Rising Enable, PFM Operation
I O = 0 AMODE = HighVI rising
Figure 10-3 Typical Inductor Switching Frequency versus Input Voltage
VO = 3.3 V MODE = Low

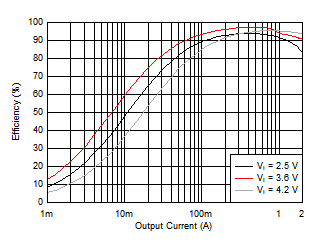

Figure 10-5 Efficiency versus Output Current (PFM/PWM)
VO = 3.3 VMODE = Low

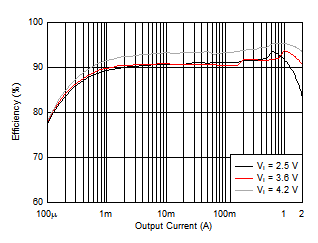

Figure 10-7 Efficiency versus Output Current (PFM/PWM)
VO = 3.3 VMODE = Low

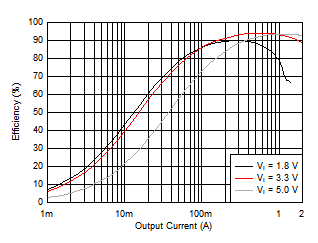

Figure 10-9 Efficiency versus Input Voltage (PFM/PWM)
VO = 3.3 VMODE = High
Figure 10-11 Load Regulation (PWM Only)
IO = 1 AMODE = Low

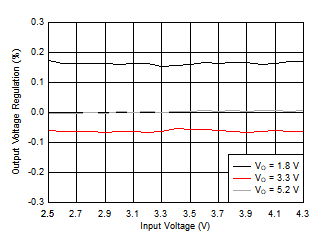

Figure 10-13 Line Regulation (PWM Only)
VI = 2.3 V, VO = 3.3 VMODE = LowIO = 40 mA
Figure 10-15 Switching Waveforms, PFM Boost Operation
VI = 4.2 V, VO = 3.3 VMODE = LowIO = 40 mA
Figure 10-17 Switching Waveforms, PFM Buck Operation
VI = 3.3 V, VO = 3.3 VMODE = LowIO = 2 A
Figure 10-19 Switching Waveforms, PWM Buck-Boost Operation
VI = 2.5 V, VO = 3.3 VIO from 100 mA to 1 A tr = 1 µs, tf = 1 µs MODE = Low
Figure 10-21 Load Transient, PFM/PWM Boost Operation
VI = 5 V, VO = 3.3 VIO from 100 mA to 1 A tr = 1 µs, tf = 1 µs MODE = Low
Figure 10-23 Load Transient, PFM/PWM Buck Operation
VI = 3.3 V, VO = 3.3 VIO from 100 mA to 1 A tr = 1 µs, tf = 1 µs MODE = High
Figure 10-25 Load Transient, PWM Buck-Boost Operation
IO = 0.5 A VI from 2.2 V to 4.2 V tr =1 µs, tf = 1 µs MODE = High
Figure 10-27 Line Transient, PWM Operation
IO = 0.5 A VI from 3 V to 3.6 V tr = 1 µs, tf = 1 µs MODE = High
Figure 10-29 Line Transient, PWM Operation
VI = 4.2 V, VO = 3.3 V MODE = High 100 mΩ resistive load
Figure 10-31 Start-up Behavior from Rising Enable, PWM Operation
