7 Typical Characteristics

at operating temperature TJ = 25°C, IOUT = 1 mA, VEN = 0.9 V, CIN = 2.2 μF, COUT = 2.2 μF, and VIN = VOUT(typ) + 0.5 V or 2.4 V (whichever is greater), unless otherwise noted; typical values are at TJ = 25°C

IOUT = 1 mA
Figure 7-1 Line Regulation vs VIN

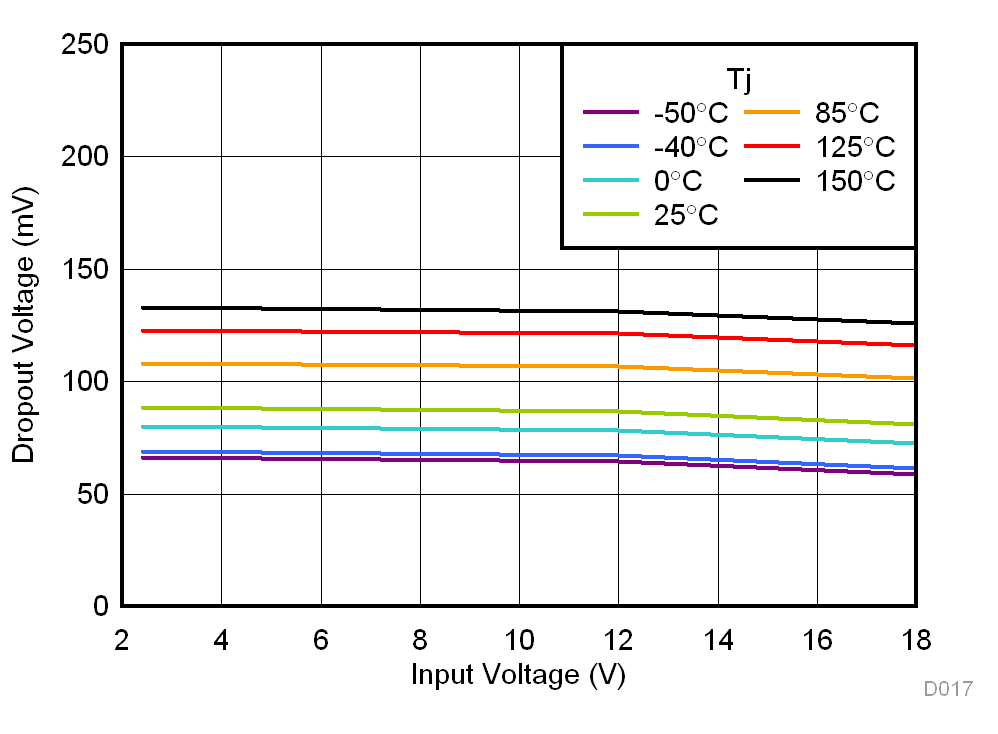

IOUT = 100 mA
Figure 7-3 Dropout Voltage vs VIN

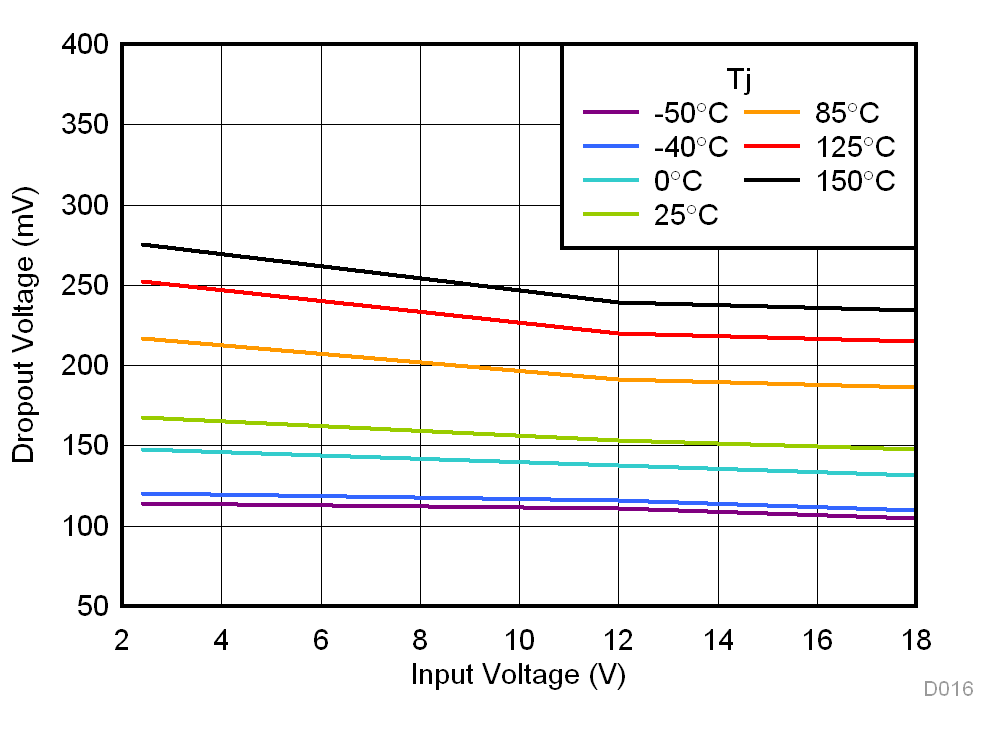

IOUT = 300 mA
Figure 7-5 Dropout Voltage vs VIN

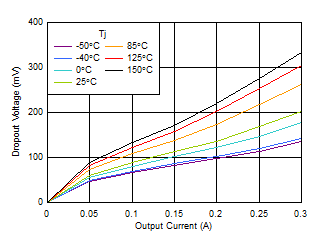

VIN = 18 V
Figure 7-7 Dropout Voltage vs IOUT
VOUT = 1.24 V, IOUT = 1 mA
Figure 7-9 IGND vs VIN
VOUT = 1.24 V, IOUT = 0 A
Figure 7-11 IQ vs VIN
VOUT = 1.24 V
Figure 7-13 Shutdown Current vs VIN
VOUT = 1.24 V, IOUT = 1 mA
Figure 7-15 UVLO Thresholds vs Temperature
VOUT = 1.24 V
Figure 7-17 PG Leakage Current vs Temperature
VOUT = 3.3 V, VIN = 4.3 V, CIN = 0 μF, COUT = 1 μF,
CFF = 10 nF
Figure 7-19 PSRR vs Frequency and IOUT
VOUT = 3.3 V, VIN = 4.3 V, IOUT = 0.3 A, CIN = 0 μF,
CFF = 10 nF
Figure 7-21 PSRR vs Frequency and COUT

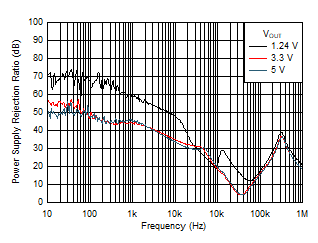

VIN = VOUT + 1 V or 2.4 V (whichever is greater), IOUT = 0.3 A, CIN = 0 μF, COUT = 1 μF, CFF = 10 nF

Figure 7-23 PSRR vs Frequency and VOUT
VOUT = 1.24 V, CIN = 1 μF, COUT = 1 μF, CFF = 10 nF,
VRMS BW = 10 Hz to 100 kHz
Figure 7-25 Output Noise (Vn) vs Frequency and IOUT
VOUT = 3.3 V, VIN = 4.3 V, IOUT = 0.3 A, CIN = 1 μF,
COUT = 1 μF, VRMS BW = 10 Hz to 100 kHz
Figure 7-27 Output Noise (Vn) vs Frequency and CFF
IOUT = 0.3 A to 0.001 mA, slew rate = 0.5 A/μs, VOUT = 3.3 V, VIN = 4.3 V, CIN = 1 μF, COUT = 1 μF
Figure 7-29 Load Transient
VIN = 4.3 V to 5.3 V, slew rate = 0.5 V/μs, VOUT = 3.3 V,
IOUT = 0.5 A, CIN = 1 μF, COUT = 1 μF
Figure 7-31 Line Transient

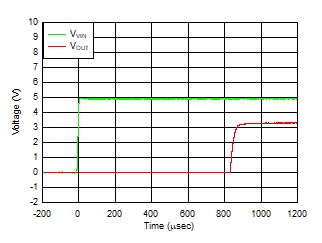

VIN = 0 V to 5 V, VEN = VIN, VOUT = 3.3 V, IOUT = 0.3 A,
CIN = 1 μF, COUT = 1 μF
Figure 7-33 Start-Up With Enable Pin Tied to Input
VOUT = 1.24 V
Figure 7-2 Load Regulation vs IOUT
IOUT = 250 mA
Figure 7-4 Dropout Voltage vs VIN
VIN = 2.4 V
Figure 7-6 Dropout Voltage vs IIN

Figure 7-8 Current Limit vs VIN

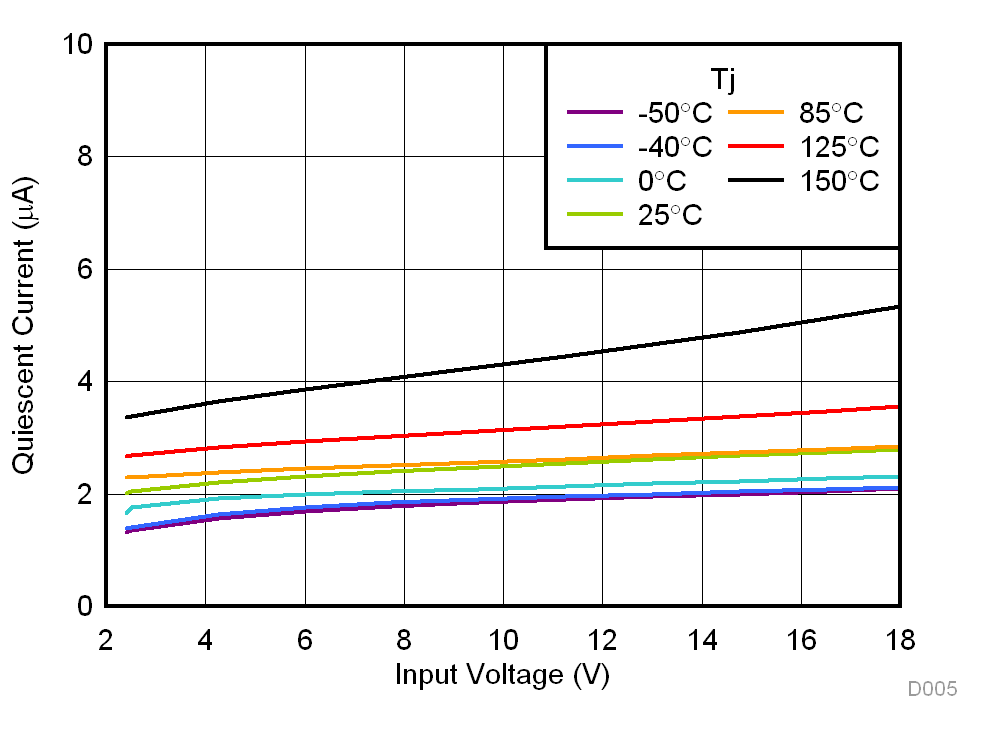

VOUT = 1.24 V, IOUT = 0 A
Figure 7-10 IQ vs VIN
VOUT = 1.24 V
Figure 7-12 IGND vs IOUT
VOUT = 1.24 V, 2.4 V ≤ VIN ≤ 18 V
Figure 7-14 VEN Thresholds vs Temperature
VOUT = 1.24 V
Figure 7-16 PG Thresholds vs Temperature

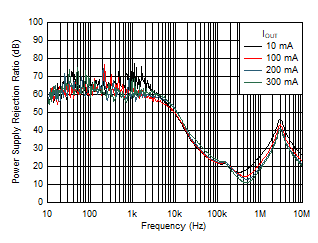

VOUT = 1.24 V, CIN = 0 μF, COUT = 1 μF, CFF = 10 nF
Figure 7-18 PSRR vs Frequency and IOUT
VOUT = 3.3 V, IOUT = 0.3 A, CIN = 0 μF, COUT = 1 μF,
CFF = 10 nF
Figure 7-20 PSRR vs Frequency and VIN
VOUT = 3.3 V, VIN = 4.3 V, IOUT = 0.3 A, CIN = 0 μF,
COUT = 1 μF
Figure 7-22 PSRR vs Frequency and CFF
VIN = VOUT + 1 V or 2.4 V (whichever is greater), IOUT = 0.3 A, CIN = 1 μF, COUT = 1 μF, CFF = 10 nF, VRMS BW = 10 Hz to 100 kHz
Figure 7-24 Output Noise (Vn) vs Frequency and VOUT

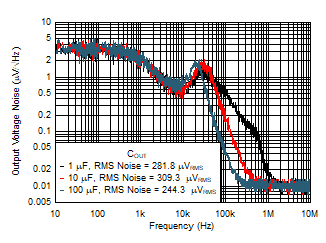

VOUT = 1.24 V, VIN = 2.4 V, IOUT = 0.3 A, CIN = 1 μF,
CFF = 10 nF, VRMS BW = 10 Hz to 100 kHz
Figure 7-26 Output Noise (Vn) vs Frequency and COUT
IOUT = 0.001 A to 0.3 A, slew rate = 0.5 A/μs, VOUT = 3.3 V, VIN = 4.3 V, CIN = 1 μF, COUT = 1 μF
Figure 7-28 Load Transient
VIN = 5.3 V to 4.3 V, slew rate = 0.5 V/μs, VOUT = 3.3 V,
IOUT = 0.5 A, CIN = 1 μF, COUT = 1 μF
Figure 7-30 Line Transient
VIN = 5 V, VEN = 0 V to 2 V, VOUT = 3.3 V, IOUT = 0.3 A,
CIN = 1 μF, COUT = 1 μF
Figure 7-32 Start-Up With Enable
