SWRS170L March   2014  – May 2025 WL1807MOD , WL1837MOD

PRODUCTION DATA

  1.   1
  2. 1 Features
  3. 2 Applications
  4. 3 Description
  5. 4 Functional Block Diagram
  6. 5 Device Comparison
    1. 5.1 Related Products
  7. 6 Pin Configuration and Functions
    1. 6.1 Pin Attributes
  8. 7 Specifications
    1. 7.1  Absolute Maximum Ratings
    2. 7.2  ESD Ratings
    3. 7.3  Recommended Operating Conditions
    4. 7.4  External Digital Slow Clock Requirements
    5. 7.5  Thermal Resistance Characteristics for MOC 100-Pin Package
    6. 7.6  WLAN Performance: 2.4GHz Receiver Characteristics
    7. 7.7  WLAN Performance: 2.4GHz Transmitter Power
    8. 7.8  WLAN Performance: 5GHz Receiver Characteristics
    9. 7.9  WLAN Performance: 5GHz Transmitter Power
    10. 7.10 WLAN Performance: Currents
    11. 7.11 Bluetooth Performance: BR, EDR Receiver Characteristics—In-Band Signals
    12. 7.12 Bluetooth Performance: Transmitter, BR
    13. 7.13 Bluetooth Performance: Transmitter, EDR
    14. 7.14 Bluetooth Performance: Modulation, BR
    15. 7.15 Bluetooth Performance: Modulation, EDR
    16. 7.16 Bluetooth Low Energy Performance: Receiver Characteristics – In-Band Signals
    17. 7.17 Bluetooth Low Energy Performance: Transmitter Characteristics
    18. 7.18 Bluetooth Low Energy Performance: Modulation Characteristics
    19. 7.19 Bluetooth BR and EDR Dynamic Currents
    20. 7.20 Bluetooth Low Energy Currents
    21. 7.21 Timing and Switching Characteristics
      1. 7.21.1 Power Management
        1. 7.21.1.1 Block Diagram – Internal DC-DCs
      2. 7.21.2 Power-Up and SHUTDOWN States
      3. 7.21.3 Chip Top-level Power-Up Sequence
      4. 7.21.4 WLAN Power-Up Sequence
      5. 7.21.5 Bluetooth-Bluetooth Low Energy Power-Up Sequence
      6. 7.21.6 WLAN SDIO Transport Layer
        1. 7.21.6.1 SDIO Timing Specifications
        2. 7.21.6.2 SDIO Switching Characteristics – High Rate
      7. 7.21.7 HCI UART Shared-Transport Layers for All Functional Blocks (Except WLAN)
        1. 7.21.7.1 UART 4-Wire Interface – H4
      8. 7.21.8 Bluetooth Codec-PCM (Audio) Timing Specifications
  9. 8 Detailed Description
    1. 8.1 WLAN Features
    2. 8.2 Bluetooth Features
    3. 8.3 Bluetooth Low Energy Features
    4. 8.4 Device Certification
      1. 8.4.1 FCC Certification and Statement
      2. 8.4.2 Innovation, Science, and Economic Development Canada (ISED)
      3. 8.4.3 ETSI/CE
      4. 8.4.4 MIC Certification
    5. 8.5 Module Markings
    6. 8.6 Test Grades
    7. 8.7 End Product Labeling
    8. 8.8 Manual Information to the End User
  10. 9 Applications, Implementation, and Layout
    1. 9.1 Application Information
      1. 9.1.1 Typical Application – WL1837MOD Reference Design
      2. 9.1.2 Design Recommendations
      3. 9.1.3 RF Trace and Antenna Layout Recommendations
      4. 9.1.4 Module Layout Recommendations
      5. 9.1.5 Thermal Board Recommendations
      6. 9.1.6 Baking and SMT Recommendations
        1. 9.1.6.1 Baking Recommendations
        2. 9.1.6.2 SMT Recommendations
  11. 10Device and Documentation Support
    1. 10.1 Device Support
      1. 10.1.1 Third-Party Products Disclaimer
      2. 10.1.2 Development Support
        1. 10.1.2.1 Tools and Software
      3. 10.1.3 Device Support Nomenclature
    2. 10.2 Support Resources
    3. 10.3 Trademarks
    4. 10.4 Electrostatic Discharge Caution
    5. 10.5 Glossary
  12. 11Revision History
  13. 12Mechanical, Packaging, and Orderable Information
    1. 12.1 TI Module Mechanical Outline
    2. 12.2 Tape and Reel Information
      1. 12.2.1 Tape and Reel Specification
      2. 12.2.2 Packing Specification
        1. 12.2.2.1 Reel Box
        2. 12.2.2.2 Shipping Box
    3. 12.3 Packaging Information
      1. 12.3.1 PACKAGE OPTION ADDENDUM

Package Options

Refer to the PDF data sheet for device specific package drawings

Mechanical Data (Package|Pins)
  • MOC|100
Thermal pad, mechanical data (Package|Pins)
Orderable Information

9.1.3 RF Trace and Antenna Layout Recommendations

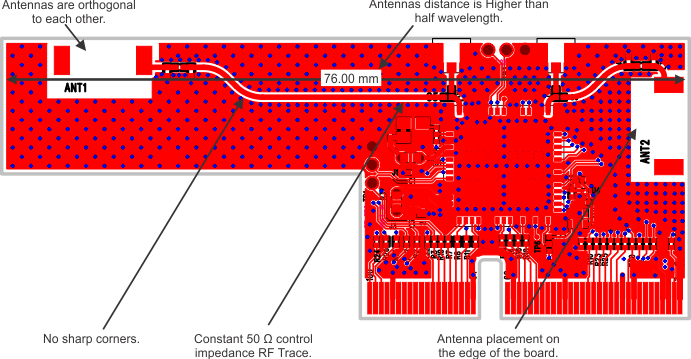

Figure 9-2 shows the location of the antenna on the WL1837MODCOM8I board as well as the RF trace routing from the WL1837 module (TI reference design). The Pulse multilayer antennas are mounted on the board with a specific layout and matching circuit for the radiation test conducted in FCC, CE, and IC certifications.

WL1807MOD WL1837MOD Location of Antenna and RF Trace Routing on the WL1837MODCOM8I BoardFigure 9-2 Location of Antenna and RF Trace Routing on the WL1837MODCOM8I Board

Follow these RF trace routing recommendations:

  • RF traces must have 50Ω impedance.
  • RF traces must not have sharp corners.
  • RF traces must have via stitching on the ground plane beside the RF trace on both sides.
  • RF traces must be as short as possible. The antenna, RF traces, and module must be on the edge of the PCB product in considering the product enclosure material and proximity.
