9.1.5 Thermal Board Recommendations

The TI module uses µvias for layers 1 through 6 with full copper filling, providing heat flow all the way to the module ground pads.

TI recommends using one big ground pad under the module with vias all the way to connect the pad to all ground layers (see Figure 9-5).

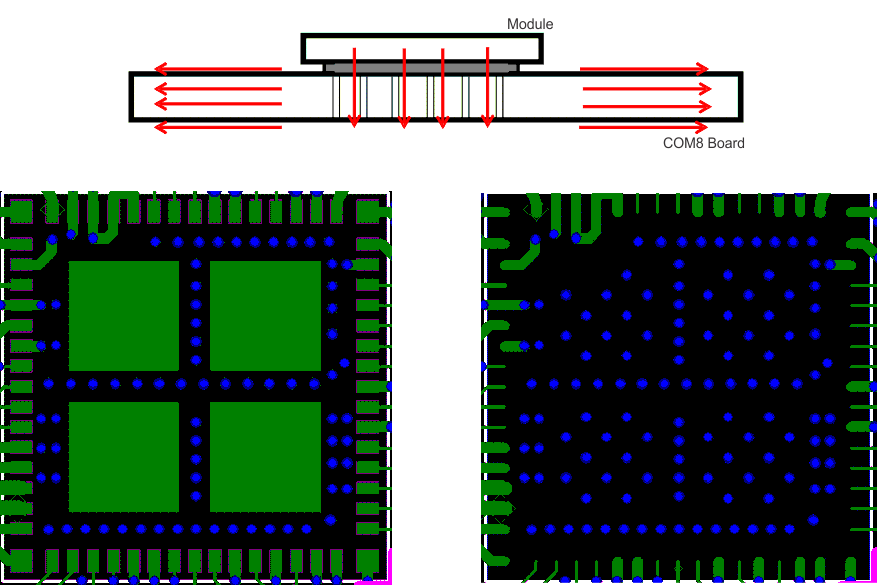

WL1807MOD WL1837MOD Block of Ground Pads on Bottom Side of PackageFigure 9-5 Block of Ground Pads on Bottom Side of Package

Figure 9-6 shows via array patterns, which are applied wherever possible to connect all of the layers to the TI module central or main ground pads.

WL1807MOD WL1837MOD Via Array PatternsFigure 9-6 Via Array Patterns
