7.3.5.2 Manual Input Selection

There are two manual input selection modes that can be set by a register: Manual with Auto-Fallback and Manual with Auto-Holdover. In either manual mode, the input selection can be done through register control (Table 7-5) or hardware pin control (Table 7-6).

  • Manual with Auto-Fallback: In this mode, the manually selected reference is the active reference until the reference becomes invalid. If the reference becomes invalid, the DPLL does automatically fallback to the highest priority input that is valid or qualified. If no prioritized inputs are valid, the DPLL enters holdover mode (if tuning word history is valid) or free-run mode. The DPLL exits holdover mode when the selected input becomes valid.
  • Manual with Auto-Holdover: In this mode, the manually selected reference is the active reference until the reference becomes invalid. If the reference becomes invalid, the DPLL automatically enters holdover mode (if tuning word history is valid) or free-run mode. The DPLL exits holdover mode when the selected input becomes valid.
Table 7-5 Manual Input Selection by Register Bits
DPLLx_REF_MAN_REG_SEL[2:0] BITS DPLLx_REF_MAN_SEL BIT SELECTED INPUT
000b 0 IN0
001b 0 IN1
010b 0 IN2
011b 0 IN3
100b 0 VCO1 Loopback to DPLL2
101b 0 VCO2 Loopback to DPLL1
Table 7-6 Manual Input Selection by Hardware Pins
INSELx_[1:0] PINS DPLLx_REF_MAN_SEL BIT SELECTED INPUT
00b 1 IN0
01b 1 IN1
10b 1 IN2
11b 1 IN3

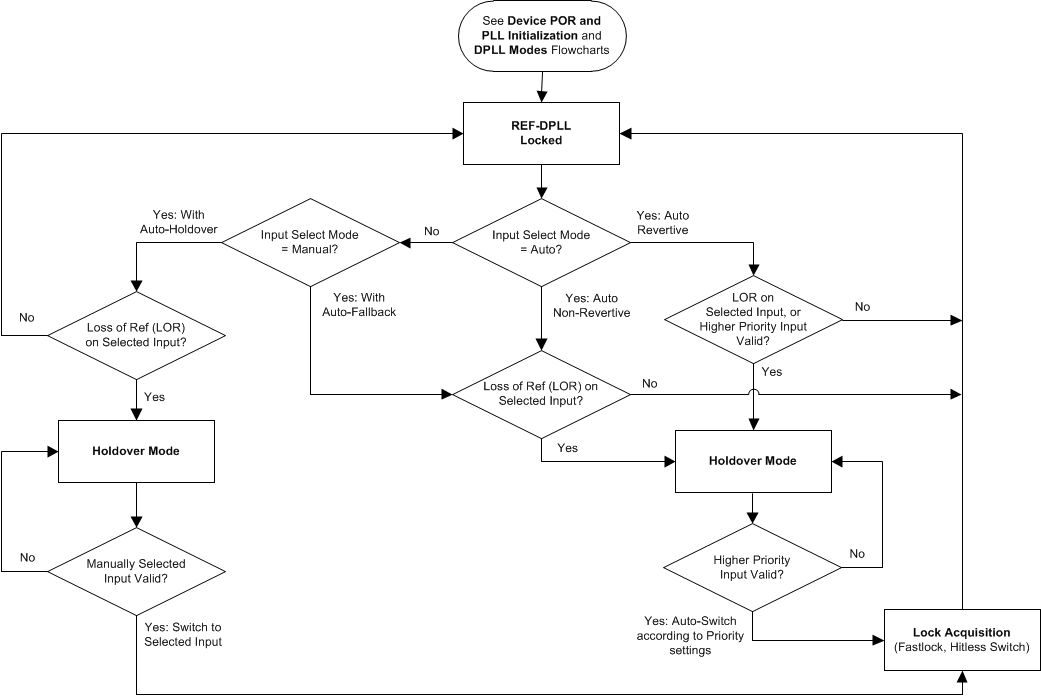

The reference input selection flowchart is shown in Figure 7-19.

LMK05028 Reference Input Selection Flowchart Figure 7-19 Reference Input Selection Flowchart
