10 EVM Assembly Drawing and PCB Layout

Figure 10-1 through Figure 10-6 show the design of the TPS51113-EVM printed circuit board. The EVM has been designed using four layers on a 2-oz. copper circuit board.

GUID-00998F43-9F02-4118-9420-4F8DA6936DD6-low.gifFigure 10-1 Top Layer Assembly Drawing (Top View)

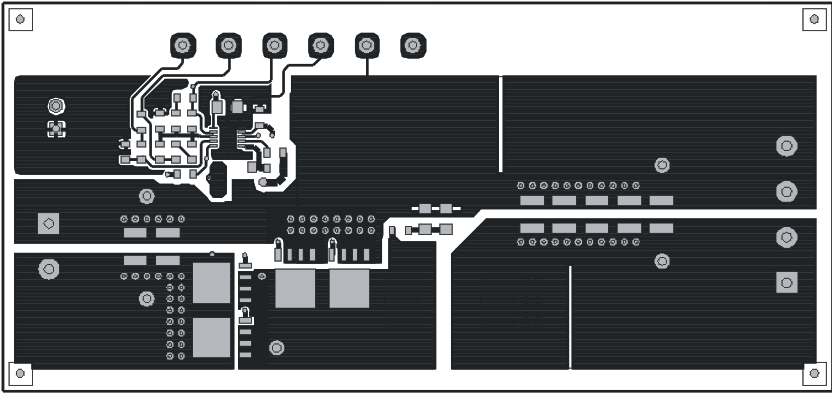

GUID-EA612DA0-FF78-403F-A904-69A266593999-low.gifFigure 10-3 Top Copper (Top View)
GUID-9FCC8D88-772B-430A-A4E3-398E77C6EFC8-low.gifFigure 10-5 Internal Layer 2 (Top View)
GUID-C444D431-5A10-44FE-A5E0-29B3D836FC24-low.gifFigure 10-2 Bottom Assembly Drawing (Bottom View)

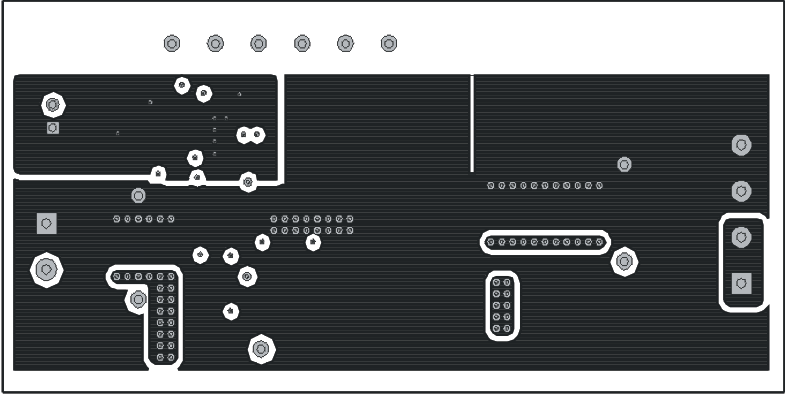

GUID-01211B86-F99B-409C-B750-B54474283B78-low.gifFigure 10-4 Internal Layer 1 (Top View)

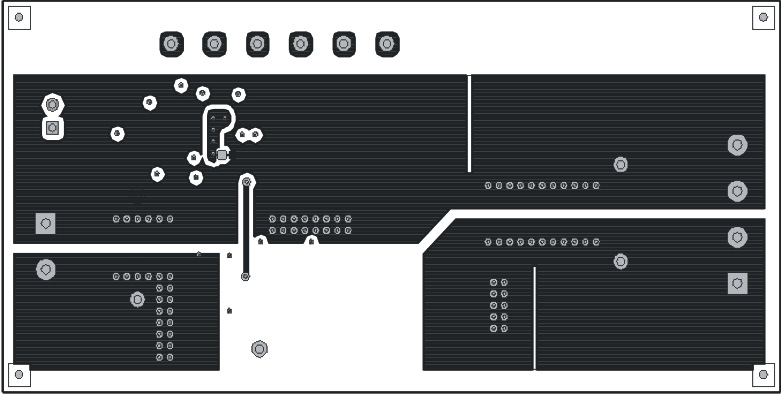

GUID-886FEE04-6953-44D5-8051-17D736967097-low.gifFigure 10-6 Bottom Copper (Top View)
