11 Performance Data and Typical Characteristics

Figure 11-1 through Figure 11-4 present typical performance curves for LMG1020EVM-006.

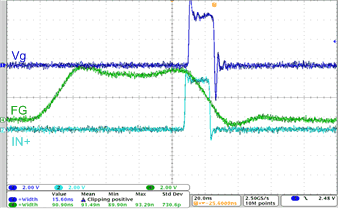

LMG1020EVM-006 90-ns Pulse from Function Generator Yielding 15-ns Pulse on the GateFigure 11-1 90-ns Pulse from Function Generator Yielding 15-ns Pulse on the Gate
LMG1020EVM-006 84-ns Pulse from Function Generator Yielding 1.5-ns Pulse on the GateFigure 11-3 84-ns Pulse from Function Generator Yielding 1.5-ns Pulse on the Gate
LMG1020EVM-006 90-ns Pulse from Function Generator Yielding 15-ns Pulse on the GateFigure 11-2 90-ns Pulse from Function Generator Yielding 15-ns Pulse on the Gate
LMG1020EVM-006 1.2-ns Gate Pulse Yielding 1.5 ns, 30 V into 1-Ω Pulse (500-MHz Scope)Figure 11-4 1.2-ns Gate Pulse Yielding 1.5 ns, 30 V into 1-Ω Pulse (500-MHz Scope)

Figure 11-1 through Figure 11-3 show how the input stage performs and how the buffer cleans up and shortens the input pulse. This allows the use of a function generator with lower specifications.

Figure 11-4, taken with a 500MHz oscilloscope, shows typical operation waveforms. On the (K) waveform it is possible to see a 20V overshoot, this is due to the inductance in the power loop. Vg seems to be oscillating, but this is caused by pickup noise, which is inevitable even when using a spring ground connection. The expected resonant frequency for the gate loop is ~70-90MHz (given Gate capacitance of ~10nF and Gate inductance of 3-5nH), the oscillation observed is at 250MHz, which would imply a gate loop inductance of ~40pH. This is therefore pickup noise.
