4.2 PCB Layouts

The layout source files for the LAUNCHXL-F29H85X are included in the LAUNCHXL-F29H85X design files download.

LAUNCHXL-F29H85X Top Signal - Layer 1 Figure 4-1 Top Signal - Layer 1
LAUNCHXL-F29H85X GND - Layer 2 Figure 4-2 GND - Layer 2
LAUNCHXL-F29H85X Middle Signal- Layer 3 Figure 4-3 Middle Signal- Layer 3
LAUNCHXL-F29H85X PWR - Layer 4 Figure 4-4 PWR - Layer 4
LAUNCHXL-F29H85X GND2- Layer 5 Figure 4-5 GND2- Layer 5

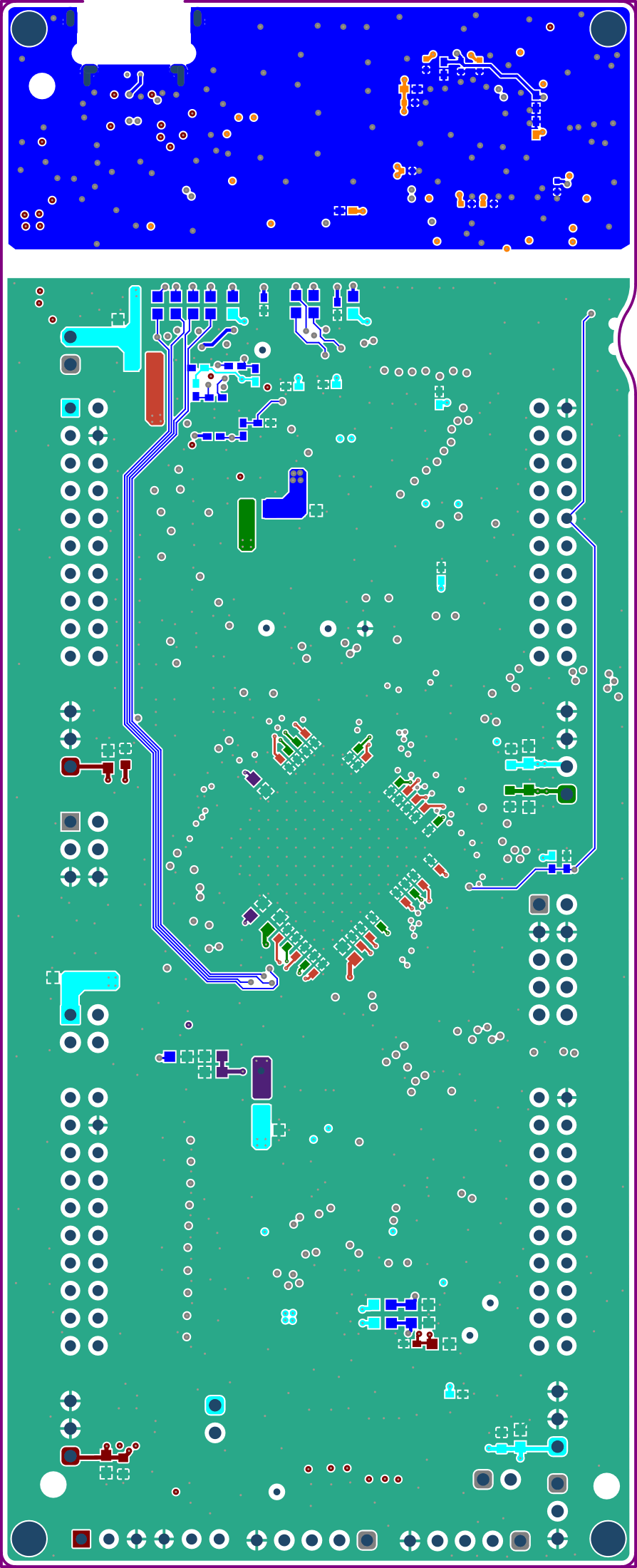

LAUNCHXL-F29H85X Bottom Signal - Layer 6 Figure 4-6 Bottom Signal - Layer 6
