2.2.2 User Connectors and I/O

This section describes the use of each DLPLCRC410EVM Controller Board external connector and provides pin out information. Figure 3-2 and Figure 3-3 show connector locations on the D4100 controller board.

DLPLCRC410EVM, DLPLCR65NEVM, DLPLCR70EVM, DLPLCR70UVEVM, DLPLCR95EVM, DLPLCR95UVEVM DLPLCRC410EVM Controller Connectors (Top View) Figure 2-2 DLPLCRC410EVM Controller Connectors (Top View)

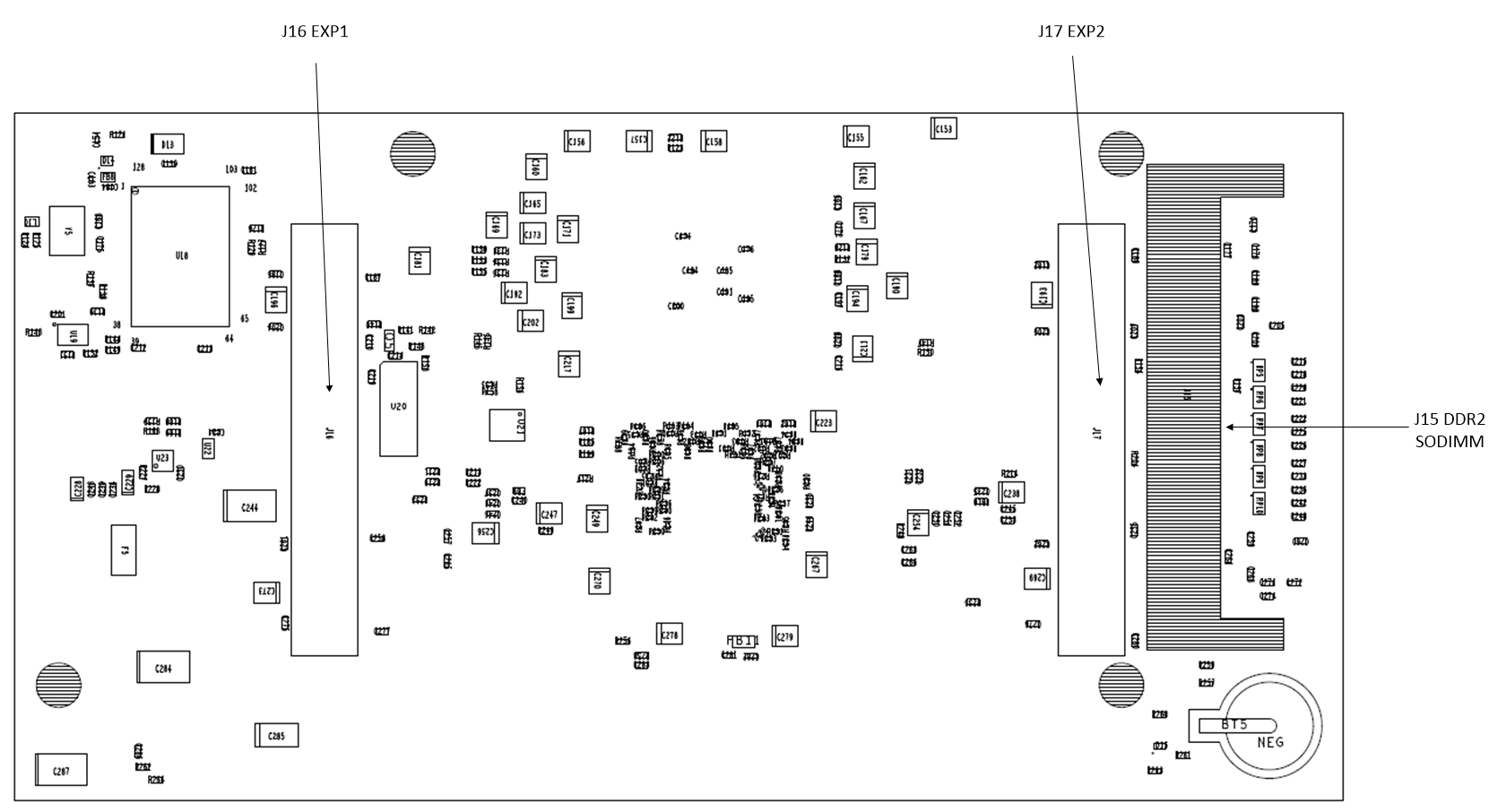

DLPLCRC410EVM, DLPLCR65NEVM, DLPLCR70EVM, DLPLCR70UVEVM, DLPLCR95EVM, DLPLCR95UVEVM DLPLCRC410EVM Controller Connectors (Bottom View) Figure 2-3 DLPLCRC410EVM Controller Connectors (Bottom View)
