3.2.1 Software Setup

Open the PPC3 application in the directory chosen for the GUI installation in Section 3.1. Figure 3-2 shows the resulting app center window. Click on the TLV320ADCx120 app tile.

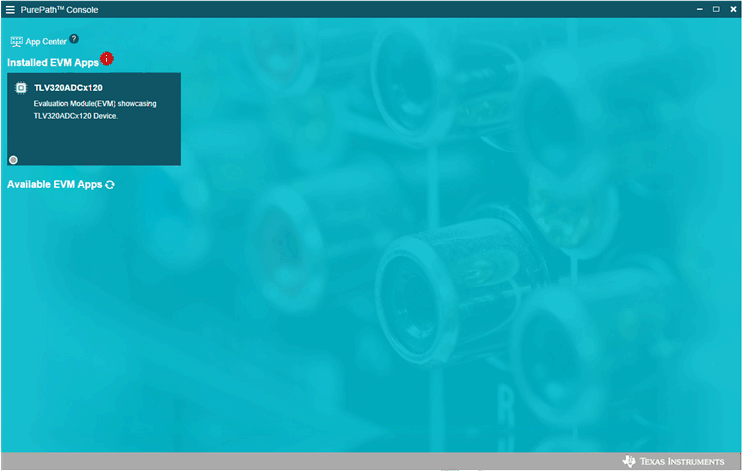

GUID-20201215-CA0I-HMCK-M6DP-L73SMCQ7Z70V-low.gifFigure 3-2 PurePath Console 3 App Center

The TLV320ADCx120 GUI is designed to work with up to four devices at any time. As shown in Figure 3-3, choose the 1 device radial button and click New.

GUID-20201215-CA0I-8Q00-WGR3-9DDNP5ZZFBMJ-low.gifFigure 3-3 Initial GUI Configuration

As shown in Figure 3-4, the GUI opens to the Audio Config tab.

GUID-20201215-CA0I-MNMD-9QP5-Z5RTN8VJRMVD-low.gifFigure 3-4 Audio Config Tab

Before changing any parameters, check the lower left corner of the PPC3 window, as shown in Figure 3-5, to verify that the EVM is connected. If no EVM is detected, the text will read ADCx120 offline. If the EVM is detected, a Connect button appears. Clicking this button connects the hardware.

GUID-20201215-CA0I-DP4L-XKKP-PJK6LPDG4MMP-low.gifFigure 3-5 Hardware Connect

When the hardware is connected, the Connect button changes to read Disconnect, and the device is ready to be configured.
