3.1 ADS1x15EVM-to-PAMBoard Interface

The ADS1x15EVM supports the digital I2C and functional modes as detailed in the ADS1115 data sheet (or the ADS1015 data sheet). The PAMBoard operates at a 3.3-V logic level and the digital I/O lines of the ADC are level shifted to match the operating voltage of the ADS1x15.

Digital interface connections to the PAMBoard include power, I2C, and a GPIO connection used for triggering an alert at the end of conversion if enabled. The digital connections are highlighted in the silkscreen, as shown in Figure 3-1. Details regarding the connections are shown in Table 3-1.

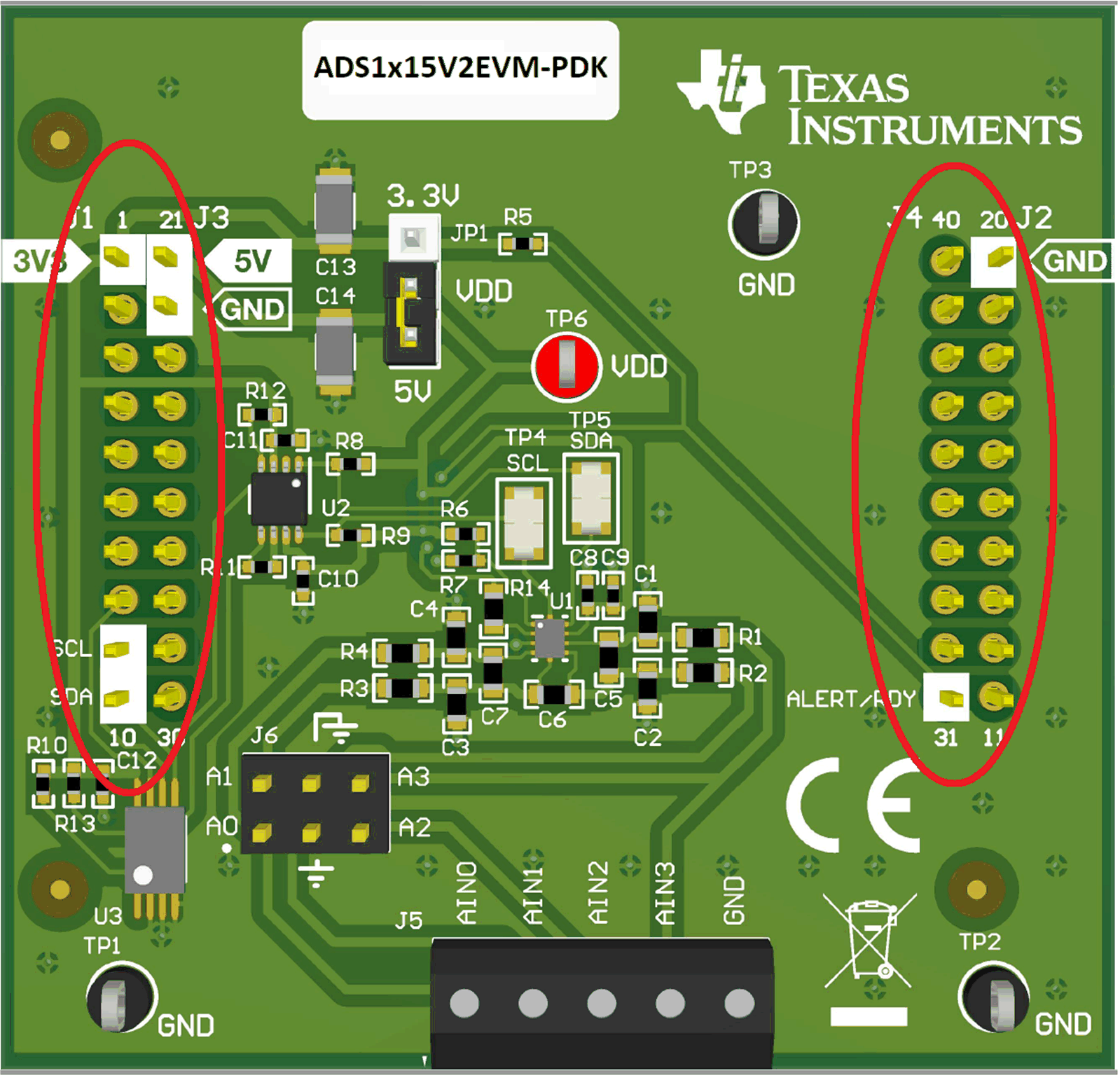

GUID-20210119-CA0I-TX7C-WCLS-MFXF54JKSVBZ-low.gif Figure 3-1 ADS1x15EVM-to-PAMBoard Connections
Table 3-1 ADS1x1EVM Header Pinout and Description
Description Connector Connector Description Description Connector Connector Description
+3.3 V J1:1 J3:21 +5 V — J4:40 J2:20 GND
— J1:2 J3:22 GND — J4:39 J2:19 —
— J1:3 J3:23 — — J4:38 J2:18 —
— J1:4 J3:24 — — J4:37 J2:17 —
— J1:5 J3:25 — — J4:36 J2:16 —
— J1:6 J3:26 — — J4:35 J2:15 —
— J1:7 J3:27 — — J4:34 J2:14 —
— J1:8 J3:28 — — J4:33 J2:13 —
I2C SCL J1:9 J3:29 — — J4:32 J2:12 —
I2C SDA J1:10 J3:30 — ALERT/RDY J4:31 J2:11 —
