5.11 Typical Characteristics

at TA = 25°C, VS = 5.5V, RL = 10kΩ connected to VS / 2, VCM = VS / 2, and VOUT = VS / 2 (unless otherwise noted)

TLV9061 TLV9062 TLV9064 Offset Voltage Production Distribution
Figure 5-1 Offset Voltage Production Distribution
TLV9061 TLV9062 TLV9064 Offset Voltage vs Temperature
Figure 5-3 Offset Voltage vs Temperature
TLV9061 TLV9062 TLV9064 Offset Voltage vs Power Supply
VS = 1.8V to 5.5V
Figure 5-5 Offset Voltage vs Power Supply
TLV9061 TLV9062 TLV9064 Open-Loop Gain vs Temperature
RL = 2kΩ
Figure 5-7 Open-Loop Gain vs Temperature
TLV9061 TLV9062 TLV9064 Input Bias Current vs Temperature
Figure 5-9 Input Bias Current vs Temperature
TLV9061 TLV9062 TLV9064 CMRR and PSRR vs Frequency (Referred to Input)
Figure 5-11 CMRR and PSRR vs Frequency (Referred to Input)
TLV9061 TLV9062 TLV9064 CMRR vs Temperature
VCM = (V–) – 0.1V to (V+) – 1.4V
TA= –40°C to 125°CRL= 10kΩVS = 5.5V
Figure 5-13 CMRR vs Temperature
TLV9061 TLV9062 TLV9064 0.1Hz to 10Hz Input Voltage Noise
VS = 1.8V to 5.5V
Figure 5-15 0.1Hz to 10Hz Input Voltage Noise
TLV9061 TLV9062 TLV9064 THD + N vs Frequency
VS = 5.5VVCM = 2.5VRL = 2kΩ
VOUT = 0.5VRMSBW = 80kHzG = +1
Figure 5-17 THD + N vs Frequency
TLV9061 TLV9062 TLV9064 THD + N vs Amplitude
VS = 5.5VVCM = 2.5VRL = 2kΩ
G = –1BW = 80kHzf = 1kHz
Figure 5-19 THD + N vs Amplitude
TLV9061 TLV9062 TLV9064 Quiescent Current vs Temperature
Figure 5-21 Quiescent Current vs Temperature
TLV9061 TLV9062 TLV9064 Small-Signal Overshoot vs Load Capacitance
V+ = 2.75VV– = –2.75VG = +1V/V
VOUT step = 100mVp-pRL = 10kΩ
Figure 5-23 Small-Signal Overshoot vs Load Capacitance
TLV9061 TLV9062 TLV9064 No Phase Reversal
V+ = 2.75VV– = –2.75V
Figure 5-25 No Phase Reversal
TLV9061 TLV9062 TLV9064 Small-Signal Step Response
V+ = 2.75VV– = –2.75VG = 1V/V
Figure 5-27 Small-Signal Step Response
TLV9061 TLV9062 TLV9064 Short-Circuit Current vs Temperature
Figure 5-29 Short-Circuit Current vs Temperature
TLV9061 TLV9062 TLV9064 Electromagnetic Interference Rejection Ratio Referred to Noninverting Input (EMIRR+) vs Frequency
PRF = –10dBm
Figure 5-31 Electromagnetic Interference Rejection Ratio Referred to Noninverting Input (EMIRR+) vs Frequency
TLV9061 TLV9062 TLV9064 Phase Margin vs Capacitive Load
VS = 5.5V
Figure 5-33 Phase Margin vs Capacitive Load
TLV9061 TLV9062 TLV9064 Large Signal Settling Time (Positive)
Figure 5-35 Large Signal Settling Time (Positive)
TLV9061 TLV9062 TLV9064 Offset Voltage Drift Distribution
TA = –40°C to 125°C
Figure 5-2 Offset Voltage Drift Distribution
TLV9061 TLV9062 TLV9064 Offset Voltage vs Common-Mode Voltage
V+ = 2.75VV– = –2.75V
Figure 5-4 Offset Voltage vs Common-Mode Voltage
TLV9061 TLV9062 TLV9064 Open-Loop Gain and Phase vs Frequency
CL = 10pF
Figure 5-6 Open-Loop Gain and Phase vs Frequency
TLV9061 TLV9062 TLV9064 Closed-Loop Gain vs Frequency
Figure 5-8 Closed-Loop Gain vs Frequency
TLV9061 TLV9062 TLV9064 Output Voltage Swing vs Output Current
V+ = 2.75VV– = –2.75V
Figure 5-10 Output Voltage Swing vs Output Current
TLV9061 TLV9062 TLV9064 CMRR vs Temperature
VS = 5.5VVCM = –0.1V to 5.6VTA= –40°C to 125°C
RL= 10kΩ
Figure 5-12 CMRR vs Temperature
TLV9061 TLV9062 TLV9064 PSRR vs Temperature
VS = 1.8V to 5.5V
Figure 5-14 PSRR vs Temperature
TLV9061 TLV9062 TLV9064 Input Voltage Noise Spectral Density vs Frequency
Figure 5-16 Input Voltage Noise Spectral Density vs Frequency
TLV9061 TLV9062 TLV9064 THD + N vs Amplitude
VS = 5.5VRL = 2kΩG = +1
VCM = 2.5VBW = 80kHzf = 1kHz
Figure 5-18 THD + N vs Amplitude
TLV9061 TLV9062 TLV9064 Quiescent Current vs Supply Voltage
Figure 5-20 Quiescent Current vs Supply Voltage
TLV9061 TLV9062 TLV9064 Open-Loop Output Impedance vs Frequency
Figure 5-22 Open-Loop Output Impedance vs Frequency
TLV9061 TLV9062 TLV9064 Small-Signal Overshoot vs Load Capacitance
V+ = 2.75VV– = –2.75VG = –1V/V
VOUT step = 100mVp-pRL = 10kΩ
Figure 5-24 Small-Signal Overshoot vs Load Capacitance
TLV9061 TLV9062 TLV9064 Overload Recovery
V+ = 2.75VV– = –2.75VG = –10V/V
Figure 5-26 Overload Recovery

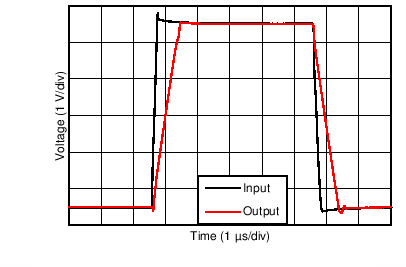

TLV9061 TLV9062 TLV9064 Large-Signal Step Response
V+ = 2.75VV– = –2.75VCL = 100pF
G = 1V/V
Figure 5-28 Large-Signal Step Response
TLV9061 TLV9062 TLV9064 Maximum Output Voltage vs Frequency and Supply Voltage
RL = 10 k‎ΩCL = 10pF
Figure 5-30 Maximum Output Voltage vs Frequency and Supply Voltage
TLV9061 TLV9062 TLV9064 Channel Separation vs Frequency
V+ = 2.75VV– = –2.75V
Figure 5-32 Channel Separation vs Frequency
TLV9061 TLV9062 TLV9064 Open Loop Voltage Gain vs Output Voltage
VS = 5.5V
Figure 5-34 Open Loop Voltage Gain vs Output Voltage
TLV9061 TLV9062 TLV9064 Large Signal Settling Time (Negative)
Figure 5-36 Large Signal Settling Time (Negative)
